Raymarine

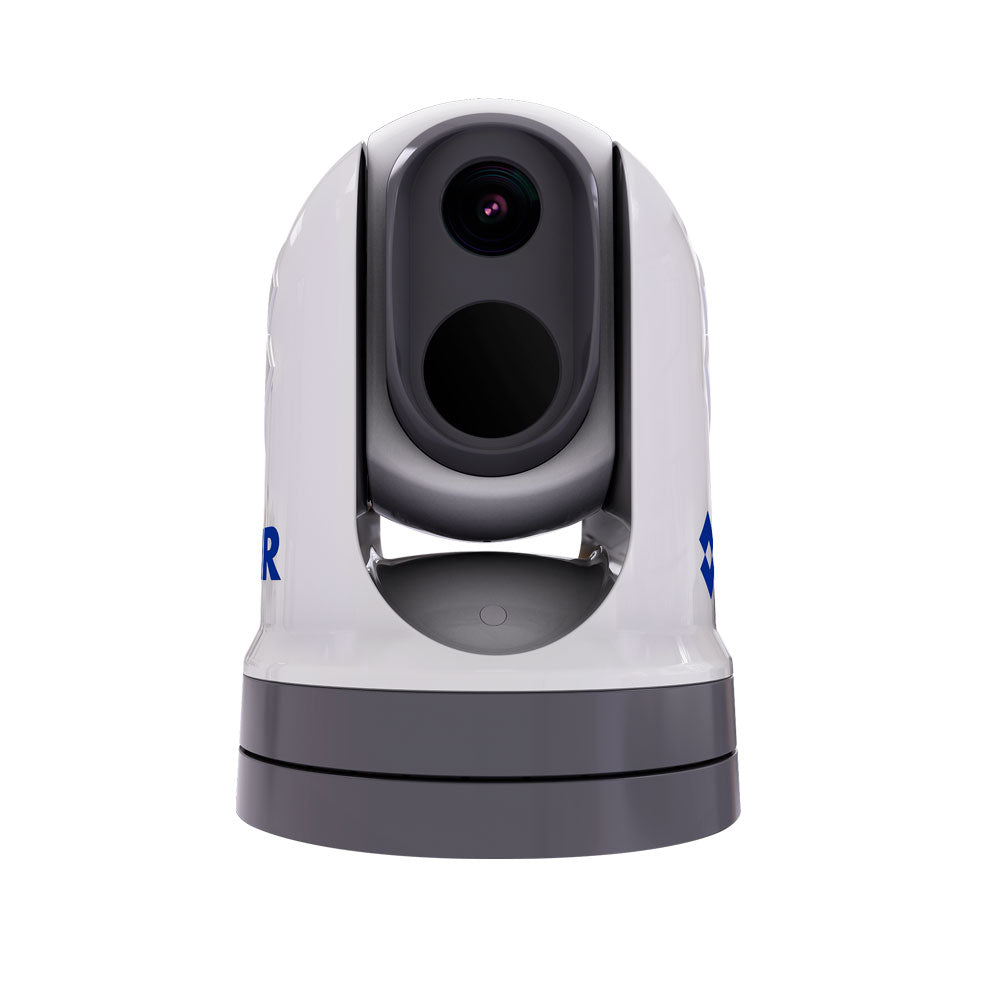

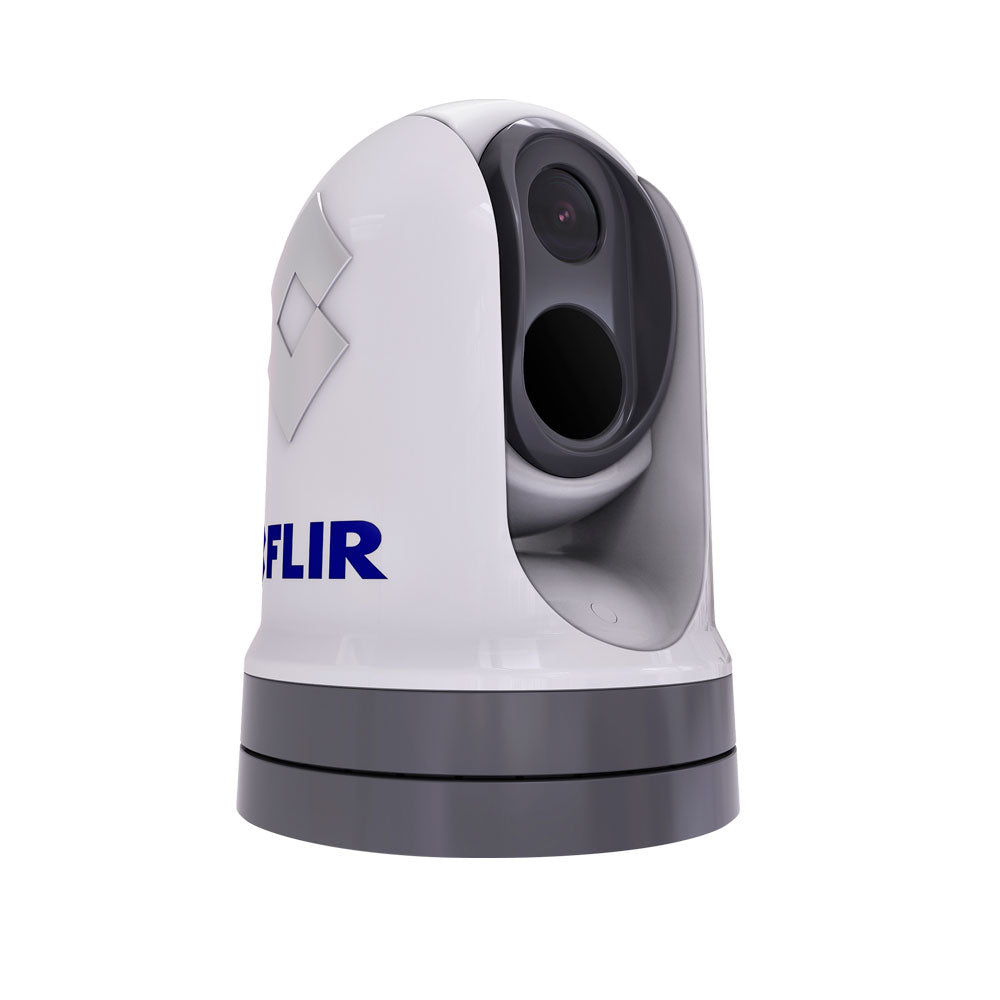

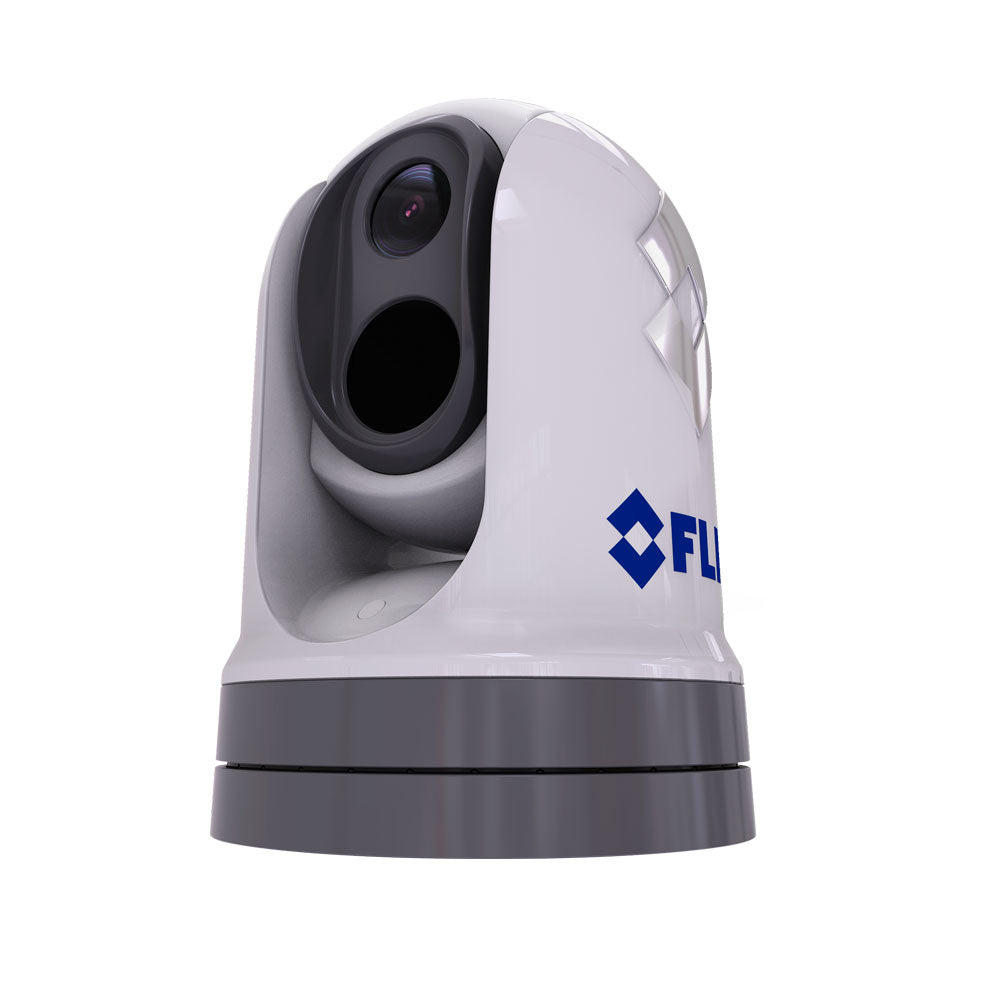

Raymarine M364C 9Hz Stabilised Pan & Tilt Thermal IP Camera by FLIR

Scrivi una recensione
| Fai una domanda

E70519 3 Year Warranty

£23,342.05

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descrizione
  • HD-SDI Lossless Video Output: Yes
  • Network Video Output: Single H.264 Network Video Stream
  • Pan & Tilt Adjustment Range: 360° Continuous Pan +110°/- 90° Tilt
  • Zoom: 30x Optical Zoom
  • Analog Video Connector Types: BNC

Featuring a high definition low light camera and one of the most advanced FLIR thermal imaging cores the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance intelligent object recognition technology and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals commercial mariners and serious recreational boaters.

Elite Awareness with Advanced Multispectral Imaging: Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.

High Definition Navigation: Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.

A Steady View in Rough Seas: Two-axis mechanical stabilisation virtually eliminates the effects of pitch heave and yaw.

Features

N/A (Not Applicable)

Specifications

THERMAL CAMERA
Focus Fixed 12 ft (3m) to infinity
Image Processing FLIR Proprietary Digital Detail Enhancement
Thermal Detector Type 640x512 VOx Microbolometer
Thermal E-Zoom 4x Continuous
Thermal Field of View 24 ° x 18 °
Thermal Focal Length 18 mm
Video Refresh Rate 30 Hz or <9 Hz

VISIBLE CAMERA
Lines of Resolution Up to 1920 x 1080 @ 30fps
Minimum Illumination 0.1 lux (ICR off, slow shutter off, high sensitivity off) / 0.006 lux (ICR on, slow shutter off, high sensitivity off)
Visible Detector Type 1/2.8” CMOS
Visible E-Zoom 12x
Visible Field of View Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
Visible Focal Length 129 mm to 4.3 mm
Zoom 30× Optical Zoom

SYSTEM SPECIFICATIONS
Analog Video Connector Types BNC
Analog Video Output NTSC/PAL User Settable
ClearCruise IR Analytics Yes, with Raymarine Axiom
Current Peak 10.0 A
Firefighter Mode No
Gyro Stabilized Yes
HD-SDI Lossless Video Output Yes
Network Video Output Four, Independent H.264/MJPEG Network Video Streams
ONVIF Conformance Profile S
Operating Voltage Range -10% to +30% of Nominal Supply Range
Pan-Tilt Adjustment Range 360° Continuous Pan, ± 90° Tilt
Power Consumption 41 W (typical) 56 W (max)

ENVIRONMENTAL
Automatic Window Defrost Standard at Power-Up
EMI IEC60945
Lightning Protection Near Strike at 2kV
Operating Temperature Range -13°F to +131°F (-25°C to +55°C)
Salt Mist IEC60945
Sand & Dust Ingress Mil-Std-810E or IP6X
Shock 15g vertical, 9g horizontal
Storage Temperature Range -22°F to +158°F (-30°C to +70°C)
Vibration IEC60945
Water Ingress IPX6 (heavy seas, power jets of water)
Wind 100 knots (115.2 MPH)

PHYSICAL
Size Camera: 8.7” (222mm) x 12.9” (328mm) / Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm)
Weight Camera: 13.9lbs (6.3kg) / Camera with Top-Down Riser: 14.9lbs (6.8kg)

RANGE PERFORMANCE
Detect a 30-foot Vessel 1.7nm (3150m)
Detect Human Sized Target 0.5nm (925m)
NATO Target 2.3m x 2.3m at 50 Pct. 0.9nm (1690m)

Raymarine M364C 9Hz Stabilised Pan & Tilt Thermal IP Camera by FLIR - PROTEUS MARINE STORE
Raymarine

Raymarine M364C 9Hz Stabilised Pan & Tilt Thermal IP Camera by FLIR

£23,342.05
  • HD-SDI Lossless Video Output: Yes
  • Network Video Output: Single H.264 Network Video Stream
  • Pan & Tilt Adjustment Range: 360° Continuous Pan +110°/- 90° Tilt
  • Zoom: 30x Optical Zoom
  • Analog Video Connector Types: BNC

Featuring a high definition low light camera and one of the most advanced FLIR thermal imaging cores the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance intelligent object recognition technology and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals commercial mariners and serious recreational boaters.

Elite Awareness with Advanced Multispectral Imaging: Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.

High Definition Navigation: Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.

A Steady View in Rough Seas: Two-axis mechanical stabilisation virtually eliminates the effects of pitch heave and yaw.
