Blue Sea MRBF Fuse Block 3 Independent Sources

Scrivi una recensione
| Fai una domanda

5194-BSS 3 Year Warranty

£66.77 £71.94

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descrizione

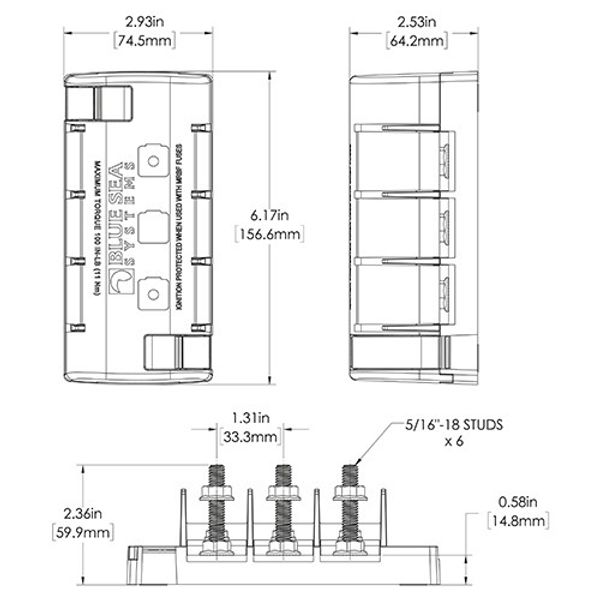

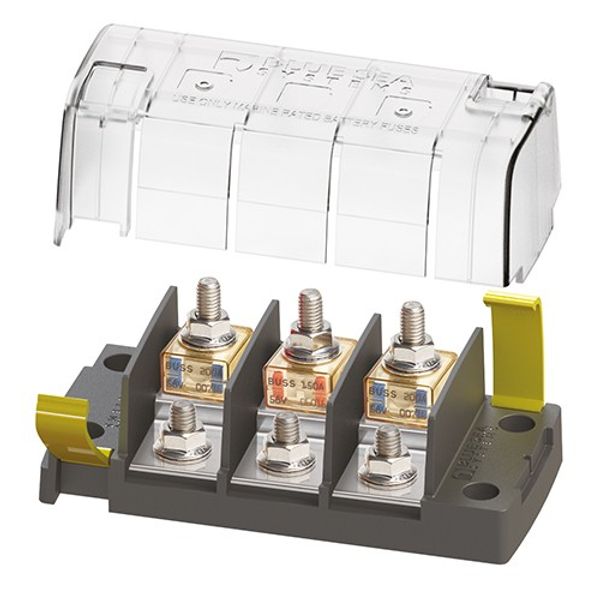

MRBF - Marine Rated Battery Fuse Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection The independent source fuse block (8-25194) is ideal for 3 output battery chargers The common source fuse block (8-25196) provides 3 loads from a single source Clip-on cover insulates terminal connections Versatile wiring options allow all wires to come out a single side Label recesses for easy circuit identification One-piece stainless flange nuts ensure safe and secure connections Ignition protected when used with MRBF fuses Fuses sold separately (see page 553 of the Aquafax main catalogue) Regulatory Meets ISO 8846 and SAE J1171 external ignition protection requirements when used with MRBF fuses and cover is securely latched Specifications: 8-25194 8-25196 Voltage Max. Operating: 58V DC 58V DC Amps Max. Operating: 300 per block 300 per block (using 4/0 cables) - 240A per circuit Terminal Fuses available: 30A-300A 30A-300A Terminal Stud Size: 5/16" -18 (8mm) 5/16" -18 (8mm) Mounting Hole Size: #10 (5mm) #10 (5mm)

Features

N/A (Not Applicable)

Specifications

o Brand: Blue Sea Systems
