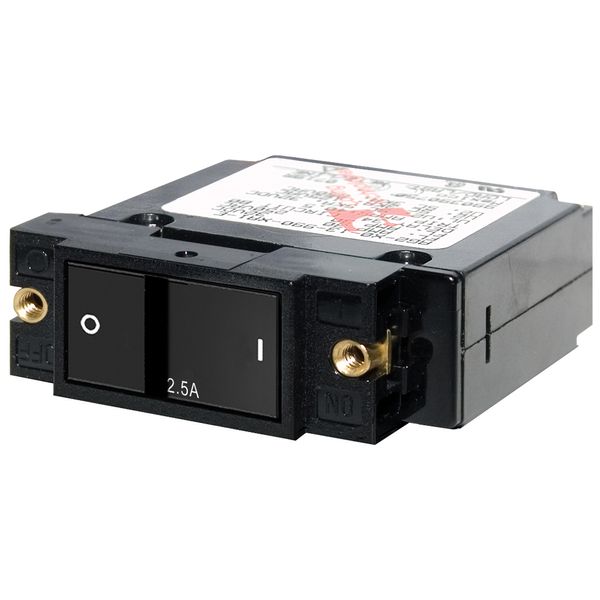

Blue Sea A Series Flat Circuit Breaker/ Switch 2.5A

Scrivi una recensione
| Fai una domanda

7399-BSS 3 Year Warranty

£23.01 £24.52

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descrizione

A-Series flat rocker circuit breaker - single pole 2.5A. Specifications o Amperage: 2.5A AC / 2.5A DC o Actuator Style: Flat Rocker o Poles: 1 o Maximum Voltage: 240V AC / 32V DC o Circuit Breaker Type: Magnetic Hydraulic - trip free o Interrupt Capacity: 3000A @ 120V AC // 1500A @ 240V AC // 5000A @ 32V DC o Minimum Operating Temperature: -40 C o Maximum Operating Temperature: 85 C o Mounting Screw: #6-32 Stainless Steel o Mounting Screw Torque: 6 in-lb (0.68 Nm) o Screw Terminal Torque: 14 in-lb (1.58 Nm) o Switching Cycles: 10000 o Terminal Screws: #10-32 Stainless Steel o Weight: 0.21lb (0.1 kg)

Features

o Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
o Colour actuator indicates "OFF" position
o "Trip Free" design cannot be held "ON" during fault current condition
o Prevents accidental switching of 24 hour circuits
o International ON/OFF symbols support vertical or horizontal mounting

Specifications

o Brand: Blue Sea Systems
