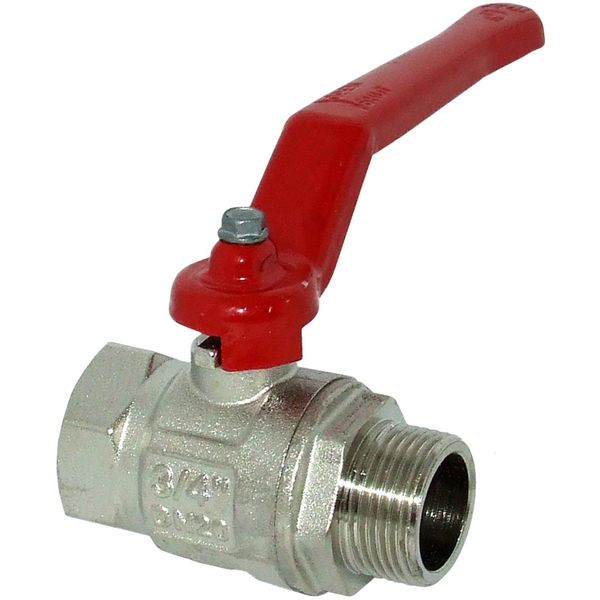

AG Lever Ball Valve PN40 3/4" BSP Male to Female

Good quality full flow ball valves at competitive prices. Suitable for industrial pneumatic & hydraulic installations including gasoline fuel oils kerosene petrol & diesel. Ideal for hot & cold water different oils & compressed air. Minimum 100000 operation design 90 degree movement by either lever or tee handle Materials: Body: Nickel plated brass CW 617N Ball: Hard chrome-plated brass CW 617N Stem: Brass CW 614N Seal: Pure Teflon (PTFE) O Rings: Viton / NBR Tee Handle: Red coated zinc plated steel Fe P04 Working Temperatures: -20 Degrees C 150 Degrees C in absence of steam WARNING the formation of ice can severely damage valves & piping Technical Specification BSP Parallel Thread ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228) Bar* - Pressure Atmosphere Kg/cm Cubed PSI* - LBS Working Pressure.

N/A (Not Applicable)

o Material: Brass
o Primary Construction: Brass
o Thread Connection: BSP
o Thread Fitting Size: 3/4"
o Thread Gender: Female|Male
o Valve Design: Ball Valve
o Maximum Pressure: 570 PSI
o Thread Size: 3/4" BSP Male & 3/4" BSP Female
o Brand: AG
