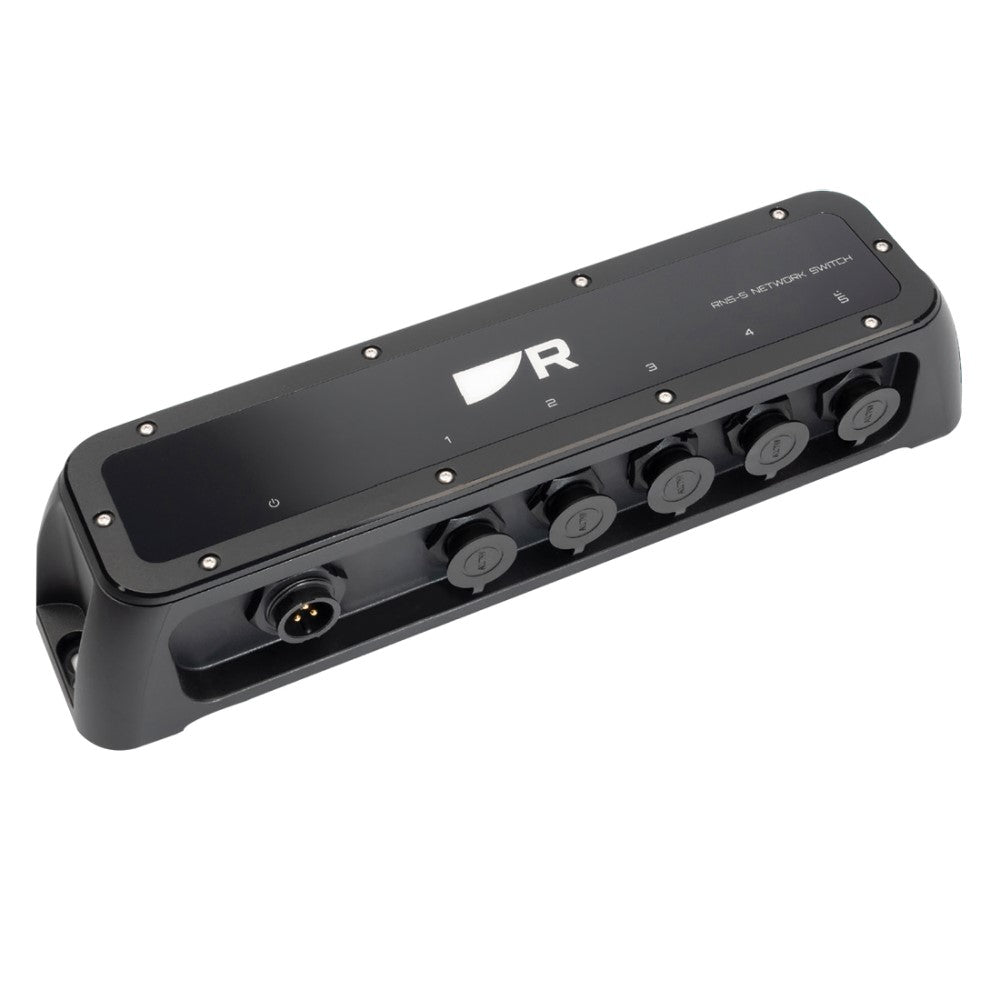

Raymarine RNS-5 Gigabit 5-Port RayNet Network Switch

• Operating voltage range: 9 to 32 V dc
• Power Consumption: <2.5 watts <600mA @12V
• Operating temperature range: -25°C (-13°F) to + 55°C (131°F)
• Water ingress protection: IPx6

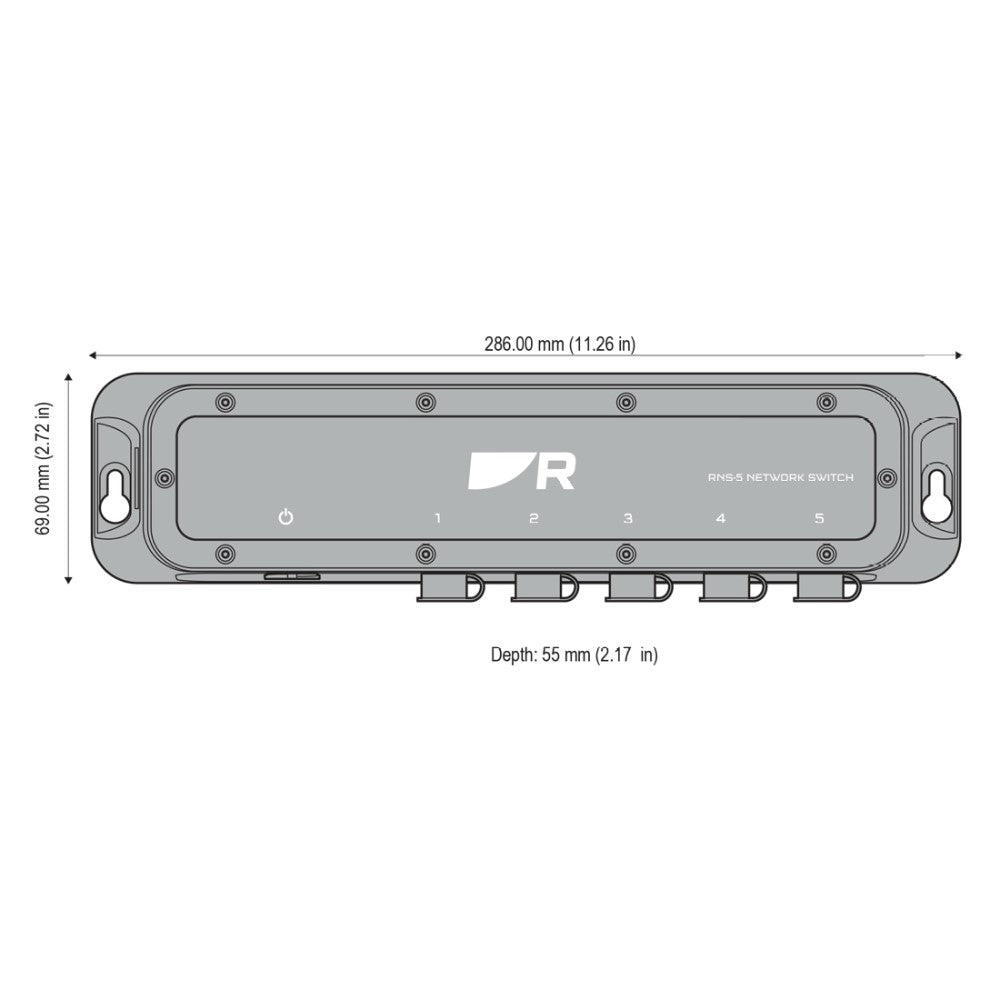

• Dimensions: 286 x 69 x 55mm (11.26\" x 2.72\" x 2.17\")
• Weight: 0.36 Kg (0.79 lbs)
• Protocals: RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
• Connection Speed: 1 Gigabit
• Number of Ports: 5
• POE (Power over Ethernet): No

The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars sonar modules IP cameras and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.

Key Features

• 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
• Rugged IPX 6 construction
• Reliable waterproof RayNet connector Ethernet cable ports
• Designed for simple bulkhead mounting
• LED power and network port status indicators
• Unmanaged- simply plug and play with Raymarine devices.
• No complicated setup or configuration
