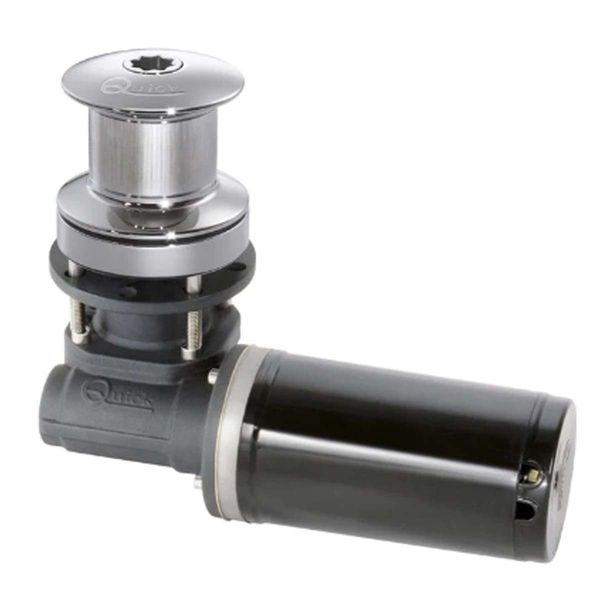

The Quick TB2 Tumbler 524 Vertical Capstan Winch

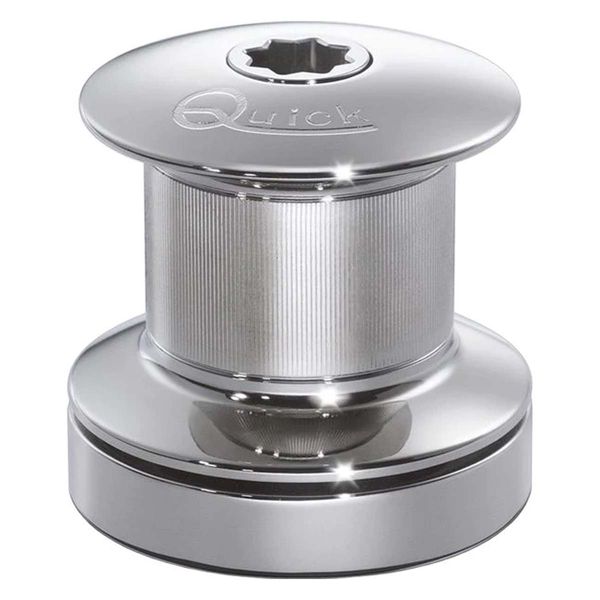

The Quick TB2 Tumbler 524 vertical capstan winch is suitable for boats from 6m to 9m (20 to 30ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 105mm (4-9/64") diameter drum which is suitable for rope.

o Warping Winch
o AISI Stainless steel 316 base and drum
o IP66 Motor watertight
o Anodised aluminium gearbox

o Primary Construction: Stainless Steel
o Brand: Quick
o Model: Quick TB2 Tumbler 524
o Colour: Black and Silver
o Voltage Description: 24V DC
o Wattage: 500W
o Working Load: 70kg (154.3lb), Maximum: 220kg (485lb)
o Maximum Pull Load: 660kg (1455 lb)
o Maximum Chain Speed: 29m/min (95.1ft/min), At Working Load: 21.7m/min (71.2ft/min)
o Amps Description: 40A at 70kg
o Fuse: 40A Protection Circuit Breaker
o Contents: Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual
o Height Description: Overall: 225mm (8 - 55/64"), Above Deck: 103mm (4 - 3/64"), Below Deck: 122mm (4 - 13/16")
o Width: 284.3mm (11-3/16")
o Depth: 137.5mm (5-13/32")
o Diameter Description: Drum: 105mm
o Thickness: 25mm - 50mm (31/32" - 1-31/32")
o Size: Motor Cable: 10mm2 (AWG7)
o Mounting Description: Vertical mount
