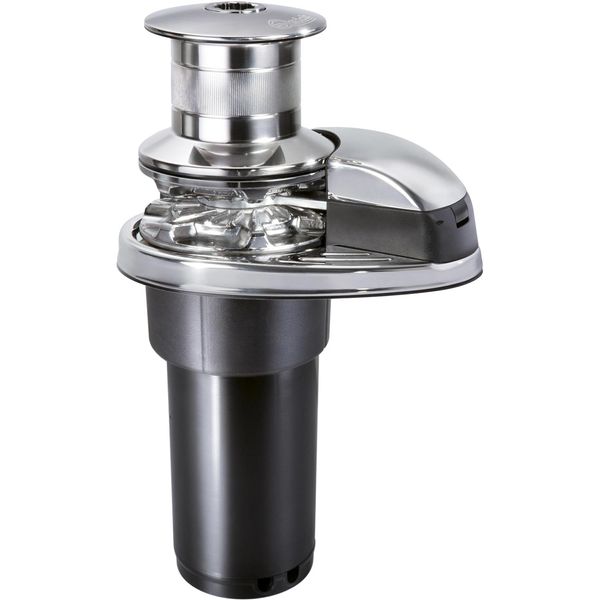

Quick DP2E 1000D Windlass Gypsy & Drum (800W / 12V / 8mm)

The Quick DP2E Prince 1000D vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This version also comes with a drum attached.

Drilling Template DP2E Prince Series

Technical Manual DP2E Prince Series

N/A (Not Applicable)

o Primary Construction: Stainless Steel
o Suitable For: Chain and Rope
o Boat Size: 7 to 12 metres in length
o Gypsy Size: 8mm
o Brand: Quick
o Series: Prince DP2E
o Model: 1000D
o Voltage Description: 12V DC
o Wattage: Motor Power: 800W
o Working Load: 95kg (209 lb), Maximum: 290kg (639 lb)
o Maximum Pull Load: 820kg (1807.8 lb)
o Maximum Chain Speed: 22.5 m/min (73.8 ft/min), At Working Load: 15.2 m/min (49.9 ft/min)
o Amps Description: Current Absorbtion At Working Load: 84A
o Fuse: 80A Protection Circuit Breaker
o Contents: Contactor Units, Nylon Handle, Drilling Template, User Manual
o Height Description: 344.5mm (13-11/64")
o Width: 196mm (7-23/32")
o Depth: 145.4mm (5-23/32")
o Size: Motor Cable: 25mm2 (AWG3)
