Shadow-Caster SCM-ZC-KIT Multi Zone Shadow-Net RGB Lighting Controller
SCM-ZC-KIT 3 Year Warranty
Shadow-Caster SCM-ZC-KIT Multi Zone Shadow-Net RGB Lighting Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
FAST FREE UK STANDARD SHIPPING*
FAST FREE UK STANDARD SHIPPING*
• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)
• Click here for more delivery information
60 DAY NO QUIBBLE RETURNS
60 DAY NO QUIBBLE RETURNS
• 60 days hassle-free returns. - exclusions apply
![](http://proteusmarinestore.com/cdn/shop/files/Screenshot_2023-07-13_at_09.21.24.png?v=1689238301&width=1000)
Description
Description
- RGB RGBW 2 colour and single colour lighting
- Zone control (for multi-zone applications only)
- Multiple fade mode changes
- Brightness in each zone
- 3 versions of music sync
- Control transition speed colour sequence for multiple fade and strobe modes
Control all of the vessel’s RGB lighting with Shadow-Caster’s easy to use multi-zone push button lighting controller. Their unique system provides 4 independent zones of colour brightness multiple fade strobe and music sync modes. The waterproof back lit controller can be mounted conveniently at the helm for quick and easy access.
Easy to use tactile push button interface with dimmable back light. Visual indication back light to indicate zone colour. No extra power switches required – the system will control all on/off power requirements for the lighting including optional Shadow-Net lights.
Technical Information
- 4 individually fused 15 amp RGBW lighting connections
- Compatible with 12/24 volt systems
- 3.5mm female audio connection for music sync input
- IP65 washdown rated enclosure
- Round controller size: 3.6″ (92mm) OD x 0.5″ (13mm) height mounting hole size 3″ (76mm)
- UV stabilized polycarbonate housing with stainless steel bezel
- Machined aluminum rear housing
- 16 Illuminated buttons

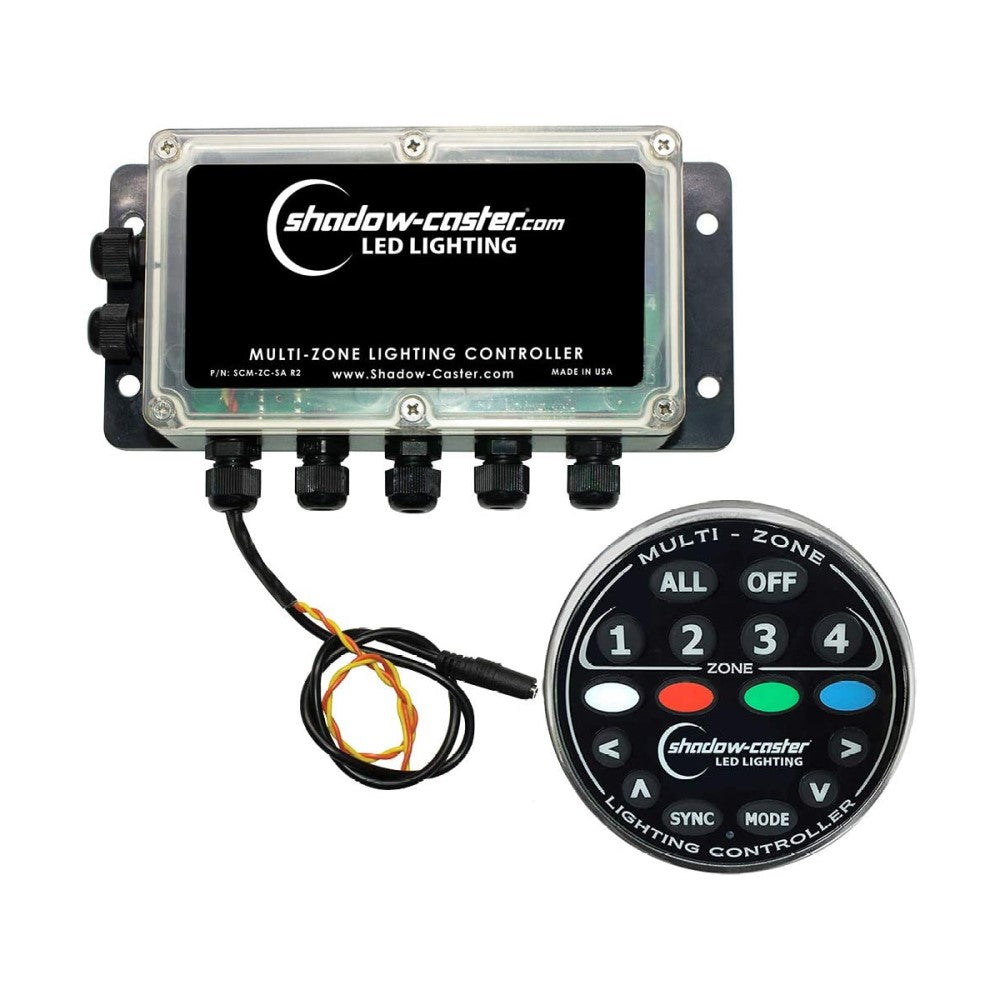

In The Box

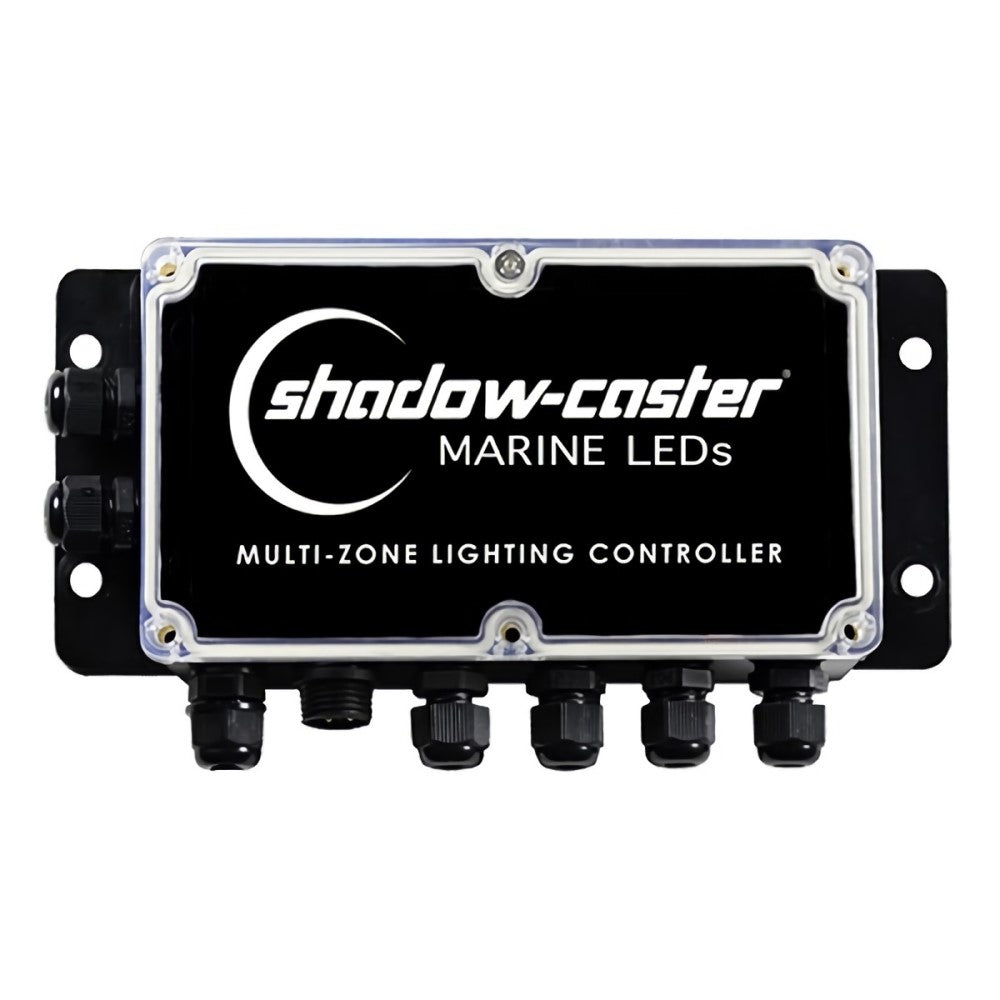

- Multi-Zone Lighting Controller (SCM-MZ-LC)

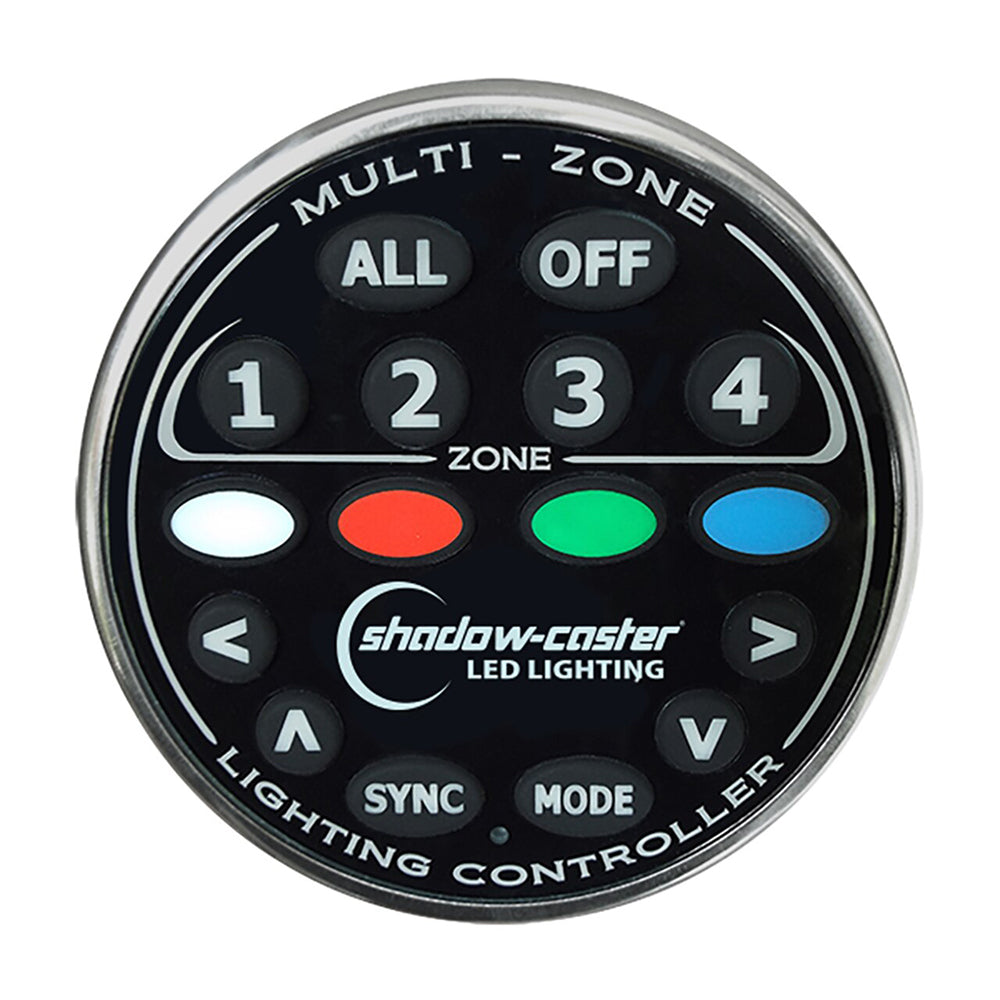

- Round Zone Controller Remote (SCM-ZC-REMOTE)
- Mounting hardware
- 1 meter Shadow-NET communication cable
- Quick start guide
