Quick Thruster Touch Push Button Control Panel Mk2 TCD2022

Write a review
| Ask a question

FNTCD2022000B00 3 Year Warranty

£189.06 £212.81

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

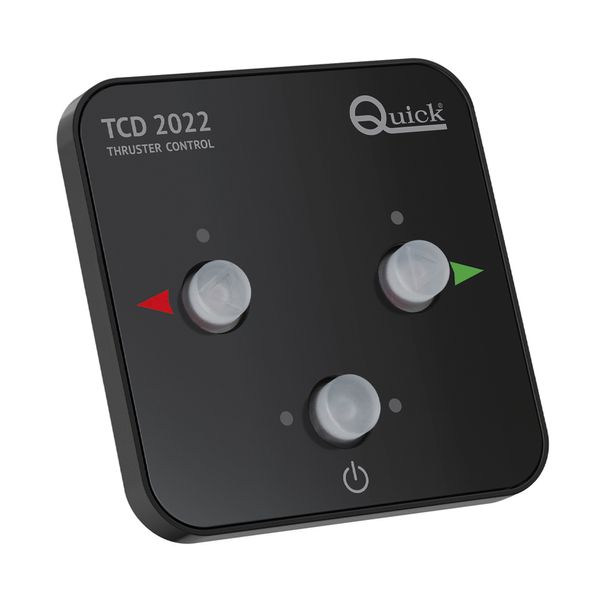

The Quick TCD 2022 remote control panel system has been designed to control the stern and bow thrusters. Ideal for operating the Quick BTQ bow-thruster through a push buttons.

Advantages of using the TCD series remote controls are:

- Simple and intuitive user interface.

- Universal power supply (12/24 Vdc).

- Can work in a wide range of ambient temperatures.

- Possibility of connecting several TCD controls in parallel.

- Easy to install by means of 2-wire connector (optional extensions).

- Automatic priority system.

- Automatic disablement.

- Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.

- Acoustic signals (that can be deactivated)

Quick tcd 2022 tcd 2042 thruster controls

Features

N/A (Not Applicable)

Specifications

o Brand: Quick
o Model: TCD2022
o Voltage Description: 12V & 24V DC (9V - 31V DC)
o Amps Description: Capacity of thruster commands: 4A max, Absorption at rest: 10mA
o Approvals: EN 60945 - FCC Title-47 Part-15 Subpart-B Class-B

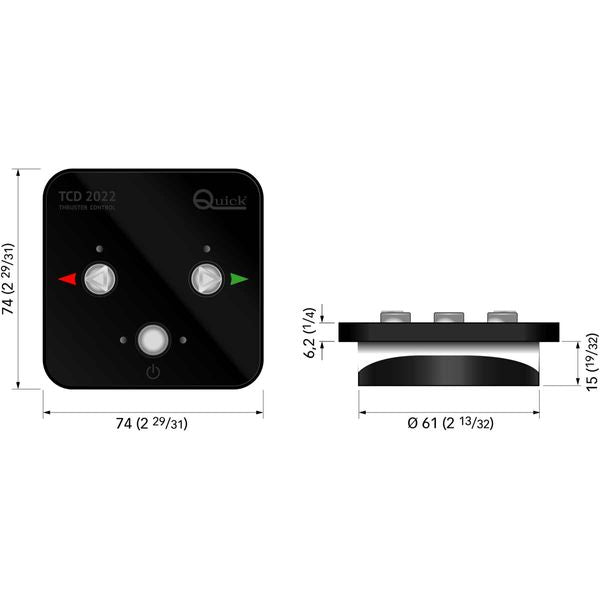

o Height Description: Overall: 21.2mm (27/32"), Panel: 6.2mm (1/4"), Behind Panel: 15mm (19/32")
o Width: 74mm (2-29/32")
o Depth: 74mm (2-29/32")
o Weight: 80g (0.17 lb)
o Operating Temperature: -20C to +70C
o Rating: IP66 (excluding back of panel which is IP20)
o Diameter Description: Cut Out: 61mm (2-13/32")
