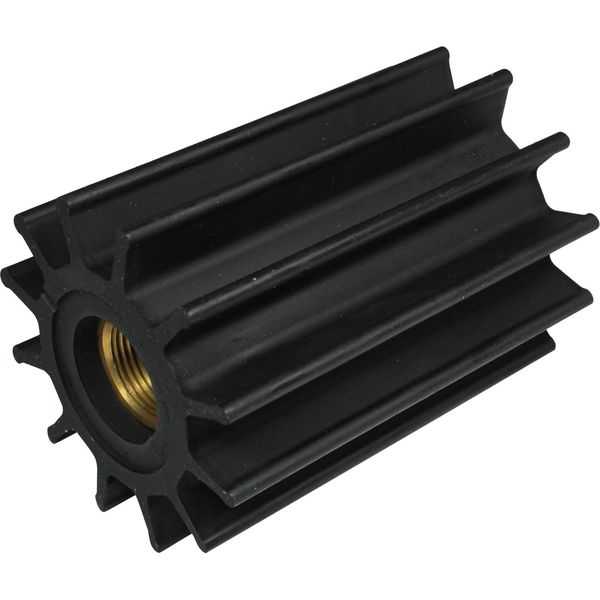

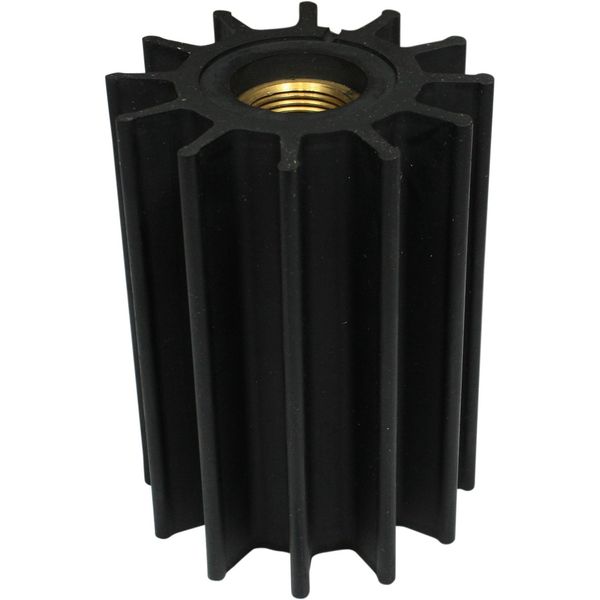

Johnson 09-820B Impeller Kit for F95 and MAN Pumps (Neoprene)

The genuine Johnson neoprene flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F95 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- F95B-9 and F95B-903 pump models: 10-13165-01, 10-13165-02, 10-13248-02, 10-13243-01 & 10-13248-01.

- F95B-3000, F95B-3007, F95B-3020 and F95B-3030 pump models: 10-13121-01, 10-13121-02, 10-13121-03 & 10-13121-04.

- F95B-5000 and F95B-5007 pump models: 10-13143-98 & 10-13143-99.

- M.A.N. pumps 51.06500-7035.

The impeller fits the following MAN engines: D2842LE/LXE/LYE/LZE, D2842LYE/LZE, LE401/02/06/03/0, D2842ME and D2842LE406/40x.

The Johnson flexible pump impeller has eight blades and is supplied complete with lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.

How to remove an old impeller:

Remove the impeller with slip joint pliers or a Johnson Pump Impuller 09-800

How to fit a new impeller:

Lubricate the shaft and the inside of the pump body and the end cover. Use Johnson Pump Lubrication to help develop prime and prevent damage from dry-running the pump at initial start-up. Mount the impeller by making a pushing and twisting movement in the rotating direction. Lubricated impellers should not be stored for extended periods of time. The engine should be run after installation of a new impeller to wash out the lubrication. These recommendations apply to any service work on the pump and its components that require the use of lubrication inside the pump for assembly and start-up.

Warning! Do not use any petroleum-based products to lubricate the inside of the pump. Only use Johnson Pump Lubrication. Other products can damage the impeller which will damage the pump and lead to engine failure. Do not run the impeller without water or lubricant; this can cause engine failure or a fire.

1. A vacuum is created as the flexible impeller vanes straighten upon leaving the cam drawing liquid into the pump.

2. The rotating impeller carries liquid from the inlet to the outlet port. As a consequence of their design flexible impeller pumps can pass fairly large solids.

3. When the flexible impeller vanes regain contact with the cam they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump.

N/A (Not Applicable)

o Material: Neoprene
o Primary Construction: Neoprene
o Impeller Shaft Diameter: 25.4mm
o Number of Impeller Blades: 12
o Drive Type Description: Spline Drive
o Brand: Johnson
o Application: Johnson F95 Pumps
o Model: 09-820B

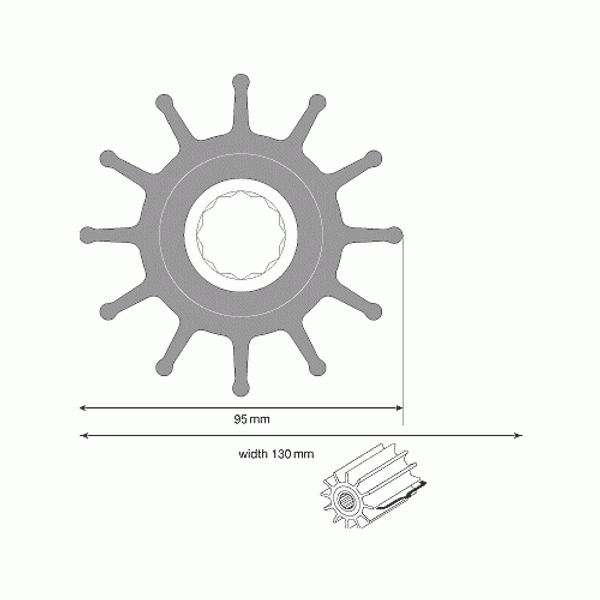

o Depth: 130mm
o Diameter Description: 95mm, Shaft 25.4mm
