Lenco 9" x 12" Complete Standard Mount Trim Tab Kit (Standard Switch)

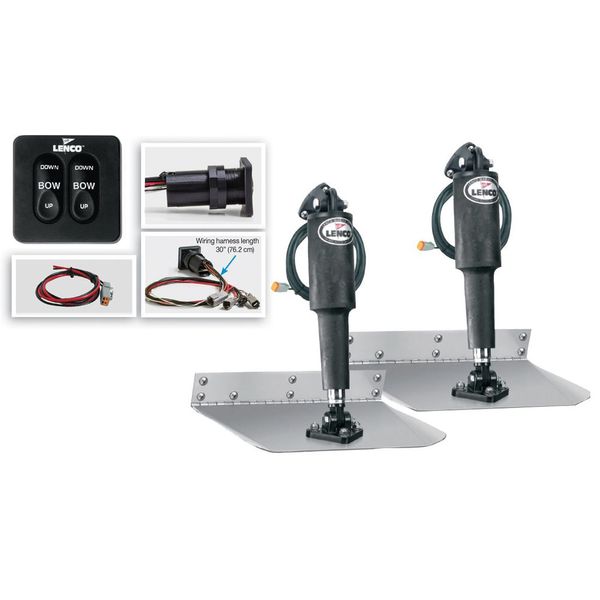

Lenco 15104-102 trim tab kit with plates, actuators, switch and harness. Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8” (1.6 cm) flared trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

L x W: 9" x 12"

Switch Kit Included: Standard Integrated Switch

(1) Switch Kit - Choose Double Rocker, NEW Standard Integrated or NEW LED Integrated

(2) 12-gauge stainless steel standard finish blades

(2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors

(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length

(2) 15085-001 upper mounting brackets with gland seal

(2) 50014-001 lower mounting brackets

Lenco owner’s/installation manual

Stainless steel mounting hardware

12-Volt

N/A (Not Applicable)

o Brand: Lenco
