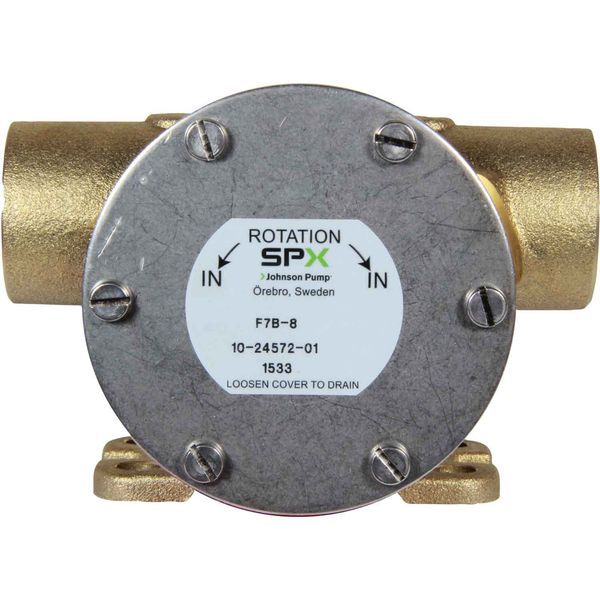

Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal

Write a review
| Ask a question

10-24572-01 3 Year Warranty

£358.41 £495.52

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:

- Volvo Penta MD2030 & MD2040

- CMD ATM100

- Isuzu 4BG1 & 6BG1 Gen-set

This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps.

Compact multi-purpose self priming impeller pumps. Pulley or in line driven. Ideal for engine cooling, bilge, deckwash, fresh water, fuel transfer etc. Also ideally suited for on shore to empty septic tanks, to flush clean and to fill water tanks. Now fitted with wear plates and S/S end covers.

Technical Specifications (Full details available on request):

Body: Bronze

Shaft: Stainless Steel, double ball bearing mounted

Seal: Mechanical Seal

Impeller: MC97 & Neoprene (standard) or Nitrile (on request)

Cam: Full (standard) or Reduced (on request)

Model: F7B-8

Table: D

Weight: 1.9kg

Impeller: 09-1028B (Neoprene)

Technical Article - Raw Water Intake System

Features

N/A (Not Applicable)

Specifications

o Flow Rate Description: 107 LPM at 2000 RPM
o Material: Bronze Body, Stainless Steel Shaft
o Suitable For: Isuzu|Volvo
o Drive Type Description: Pulley Driven
o Impeller Fitted: 09-1028B
o Replaces: Johnson F7B-8 (10-24070-1, 10-24572-13) & F4B-9 (10-24465-01), Volvo Penta 3580945
o Inlet Outlet: 1" BSP Female
o Brand: Johnson
o Series: F7B-8
o Model: 10-24572-01
o Height Description: 93mm (3.7")
o Width: 120mm (4.72")
o Length: 170mm (6.69")
o Diameter Description: Shaft: 17mm (5/8")
o Mounting Description: Pedestal Mount

Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal - PROTEUS MARINE STORE
Johnson

Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal

£358.41 £495.52

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:

- Volvo Penta MD2030 & MD2040

- CMD ATM100

- Isuzu 4BG1 & 6BG1 Gen-set

This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps.

Compact multi-purpose self priming impeller pumps. Pulley or in line driven. Ideal for engine cooling, bilge, deckwash, fresh water, fuel transfer etc. Also ideally suited for on shore to empty septic tanks, to flush clean and to fill water tanks. Now fitted with wear plates and S/S end covers.

Technical Specifications (Full details available on request):

Body: Bronze

Shaft: Stainless Steel, double ball bearing mounted

Seal: Mechanical Seal

Impeller: MC97 & Neoprene (standard) or Nitrile (on request)

Cam: Full (standard) or Reduced (on request)

Model: F7B-8

Table: D

Weight: 1.9kg

Impeller: 09-1028B (Neoprene)

Technical Article - Raw Water Intake System
