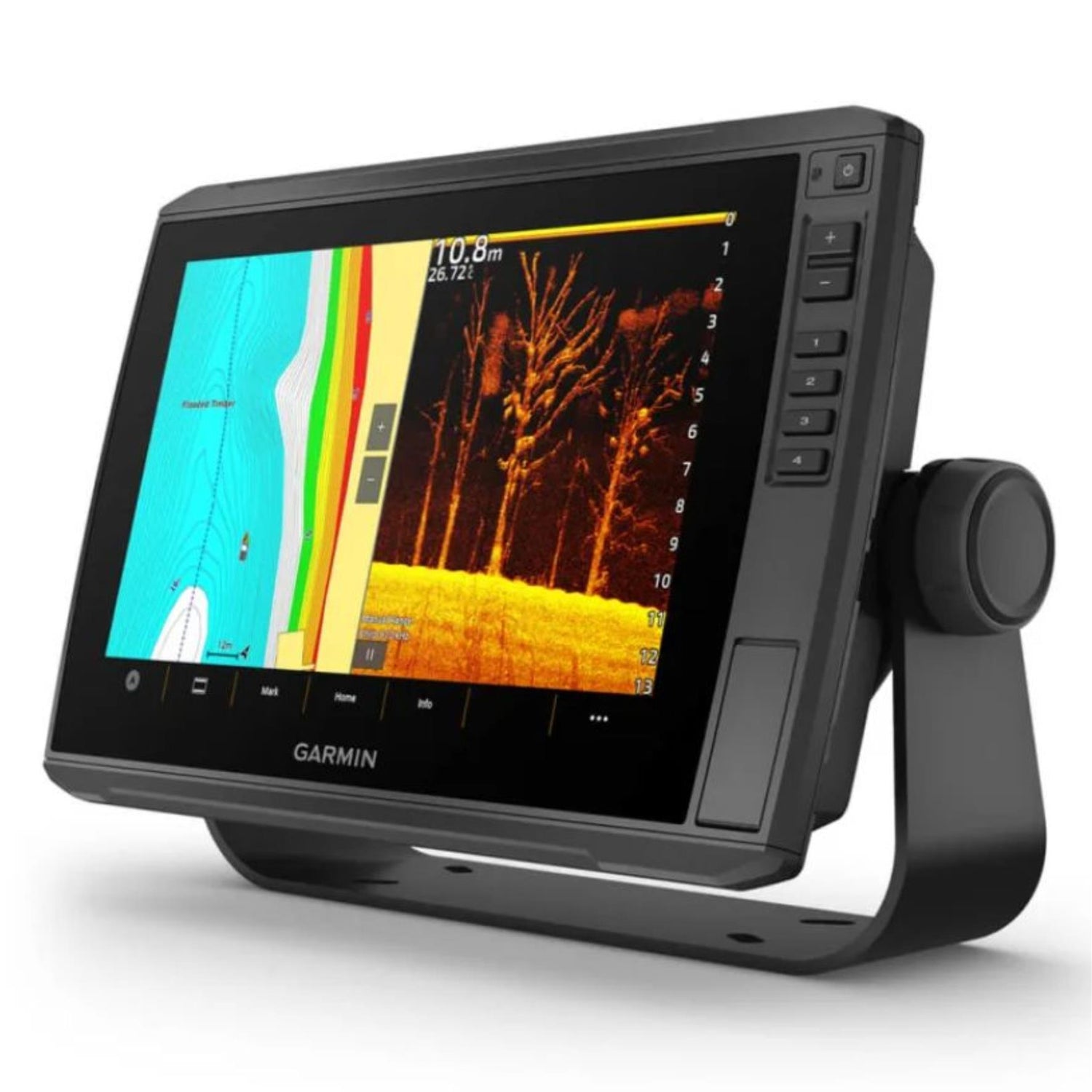

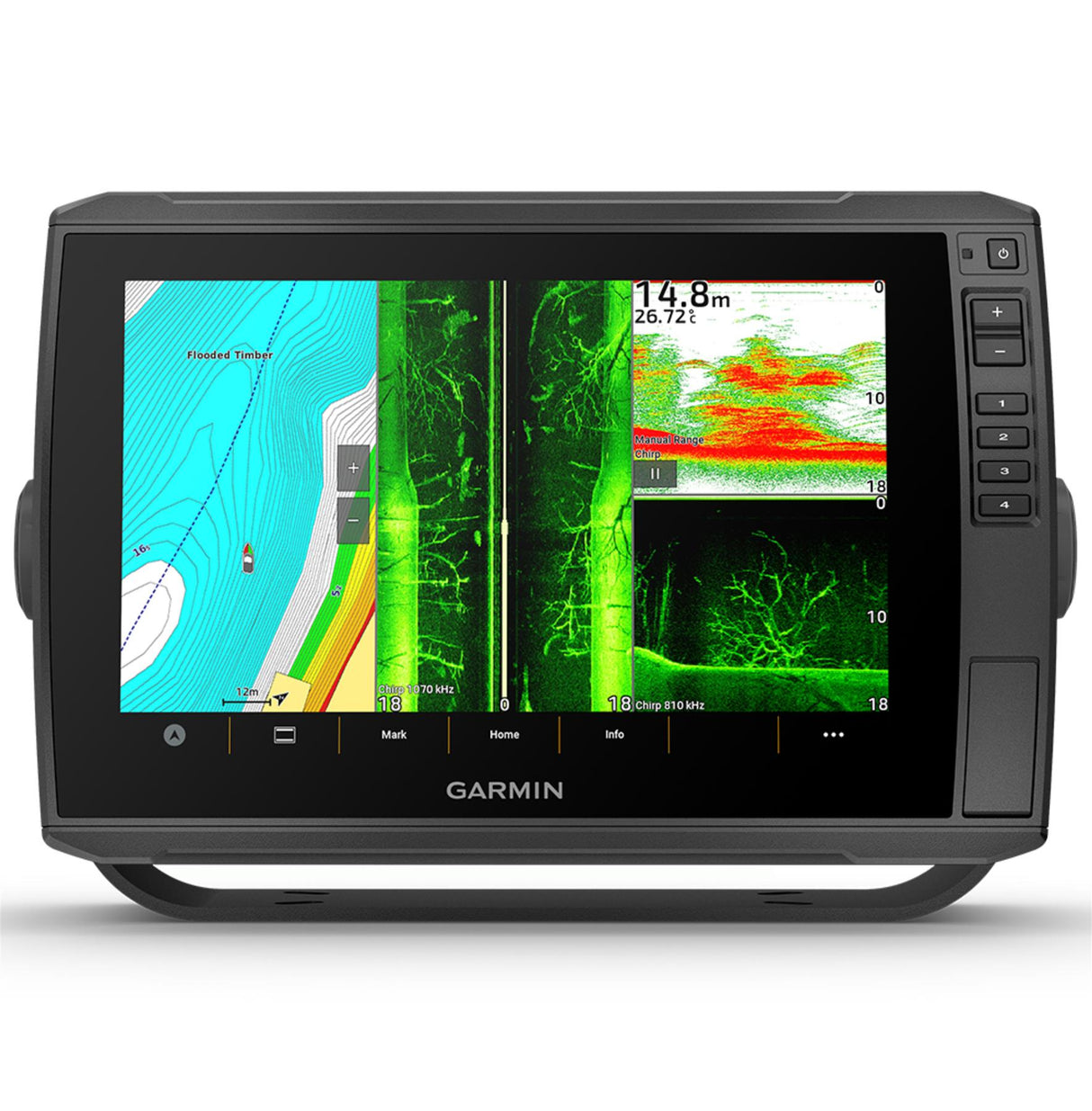

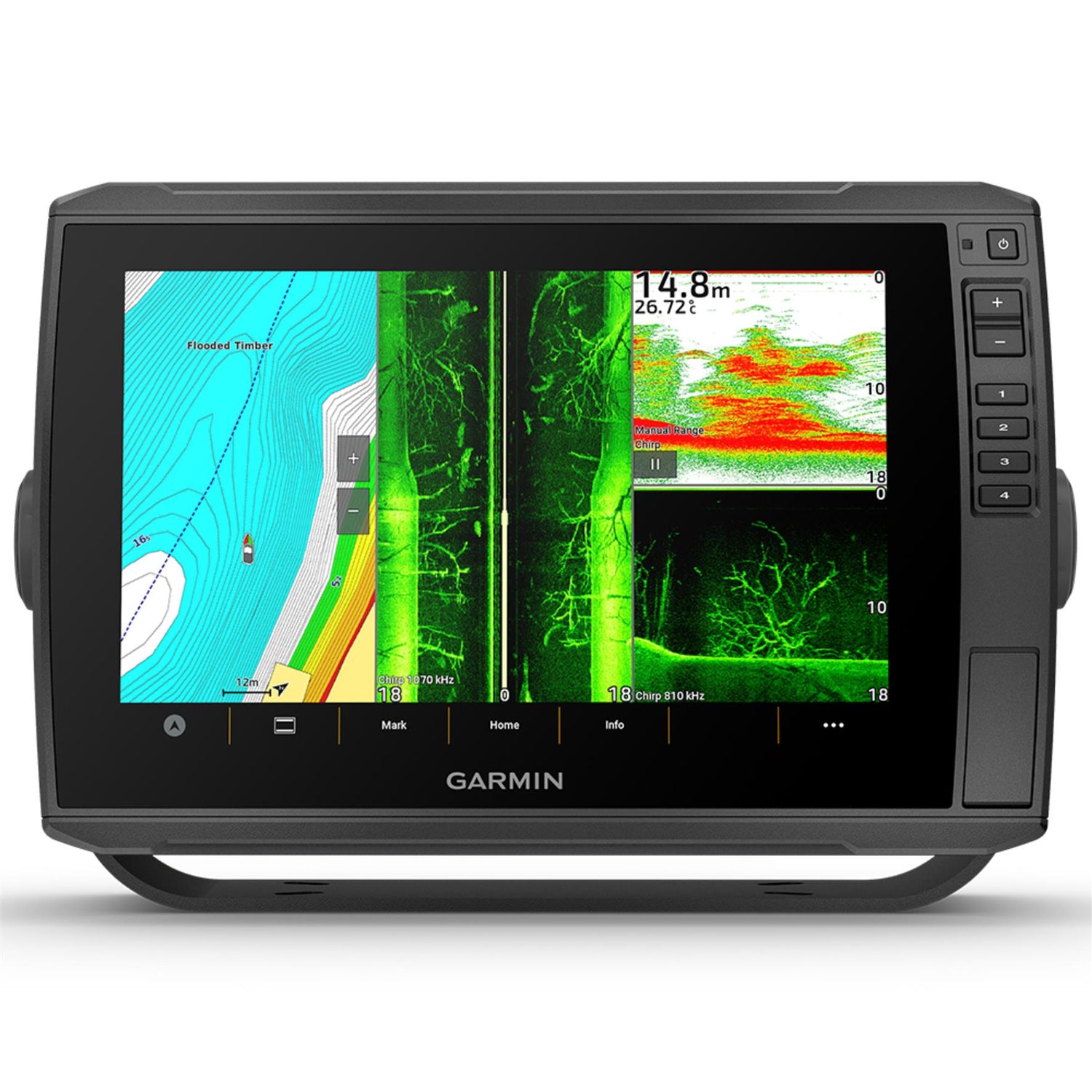

Garmin ECHOMAP Ultra 2 10" Chartplotter 102sv Display Only, IPX7, No Transducer

All the tools needed for successful fishing with big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters provide a world of fishfinding capability They support Garmin Navionics+ and Garmin Navionics Vision+ mapping.

What To Love

LiveScope Sonar Support - The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

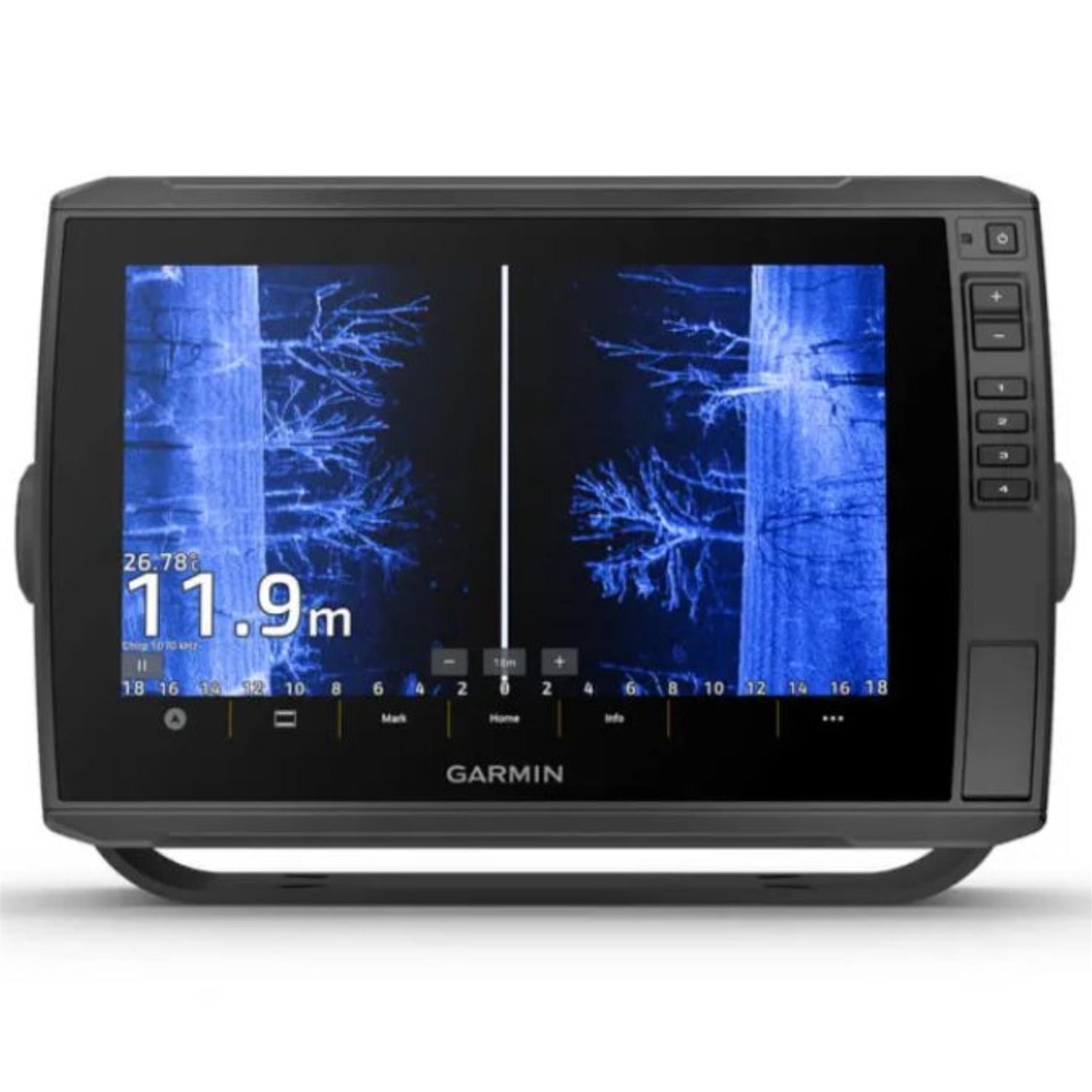

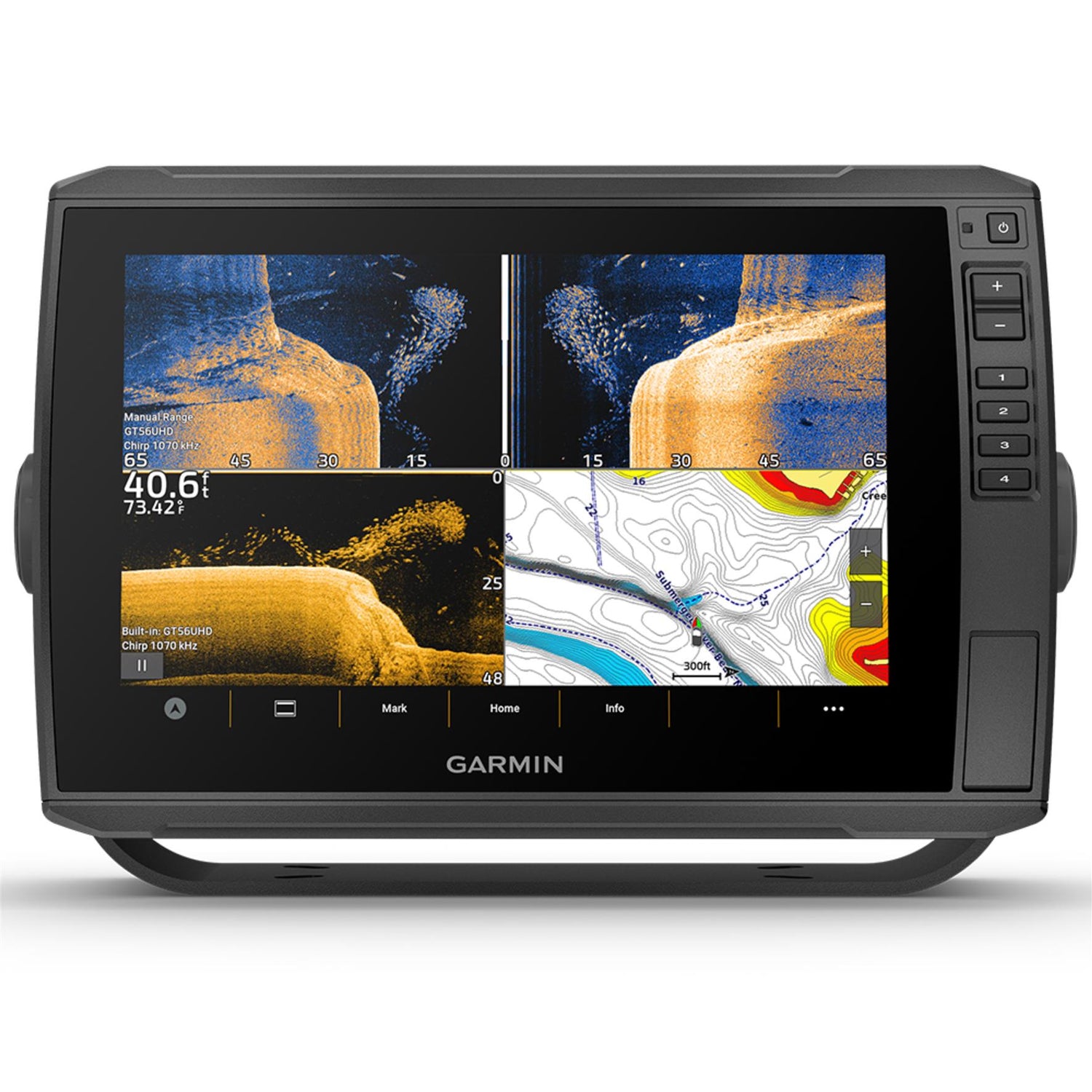

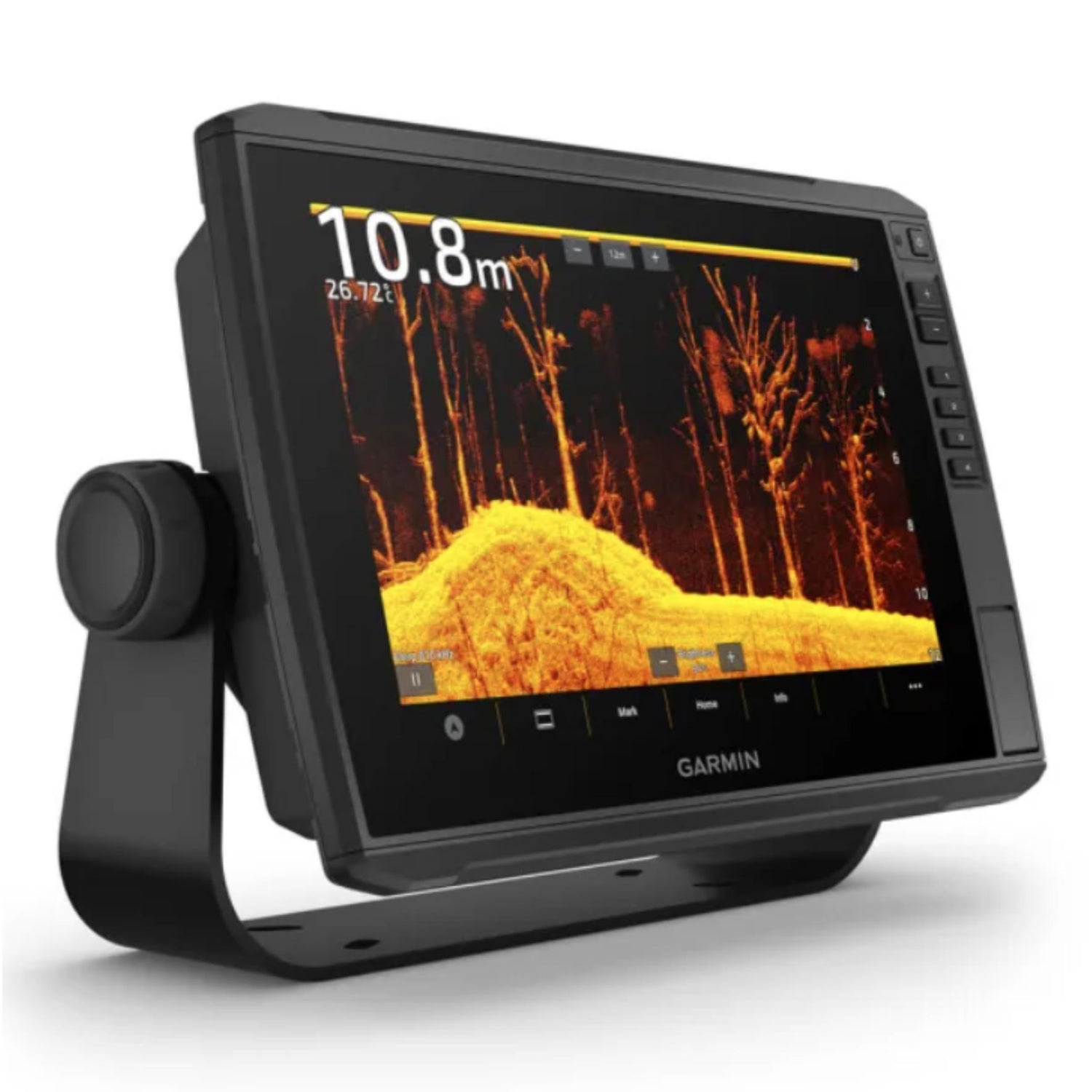

Built-in UHD Sonar - Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

Vivid colour palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

Charts & Maps - Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology and more.

Wireless Networking - Connect another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat and wirelessly share information such as sonar, waypoints and routes.

Stay Connected

Multi-band GPS - Get improved position accuracy with multi-band GPS

NMEA 2000 Newtwork Compatibility - Connect to heading sensors, autopilots, Fusion-Link audio systems and more.

ActiveCaptain App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data and more.

Force Trolling Motor - Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

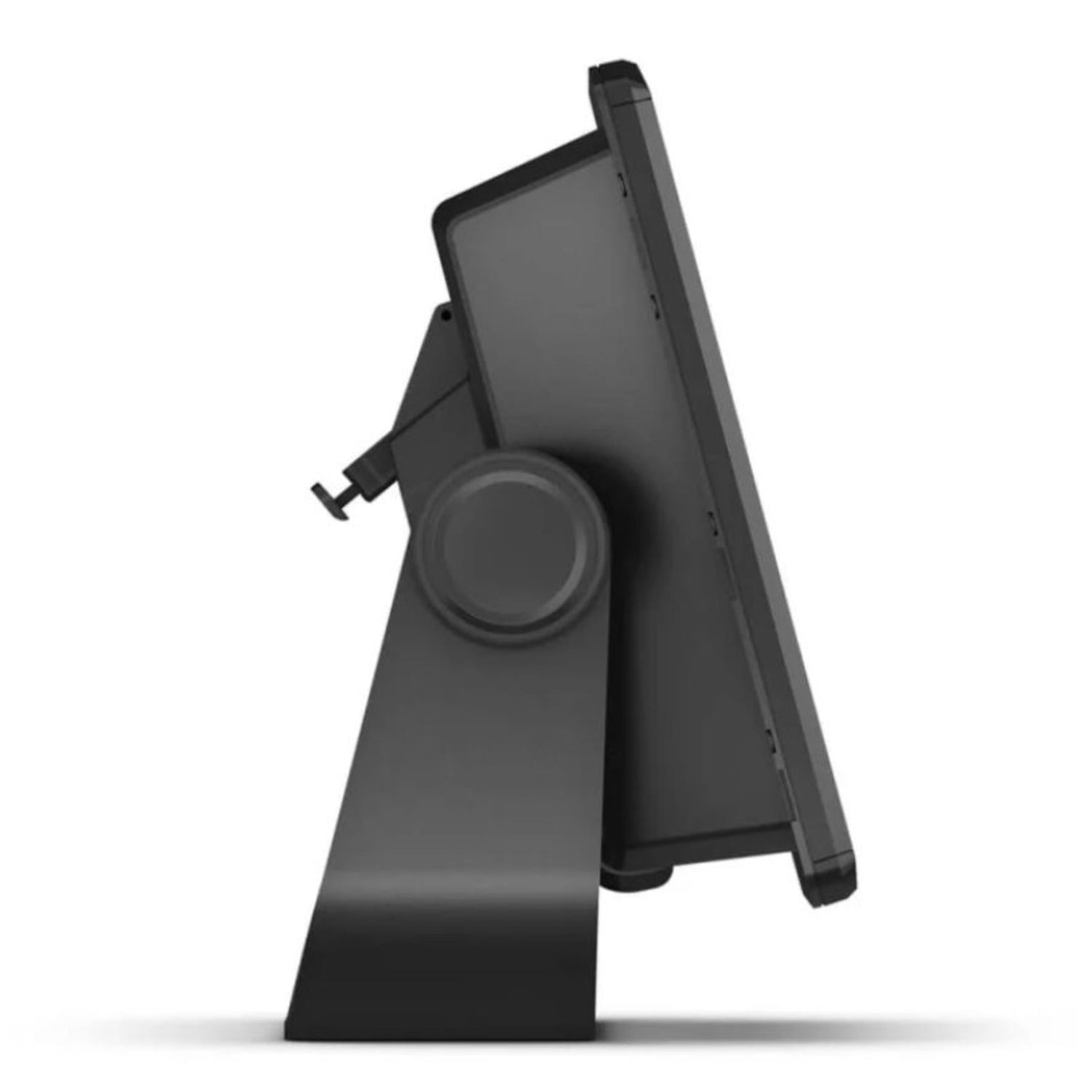

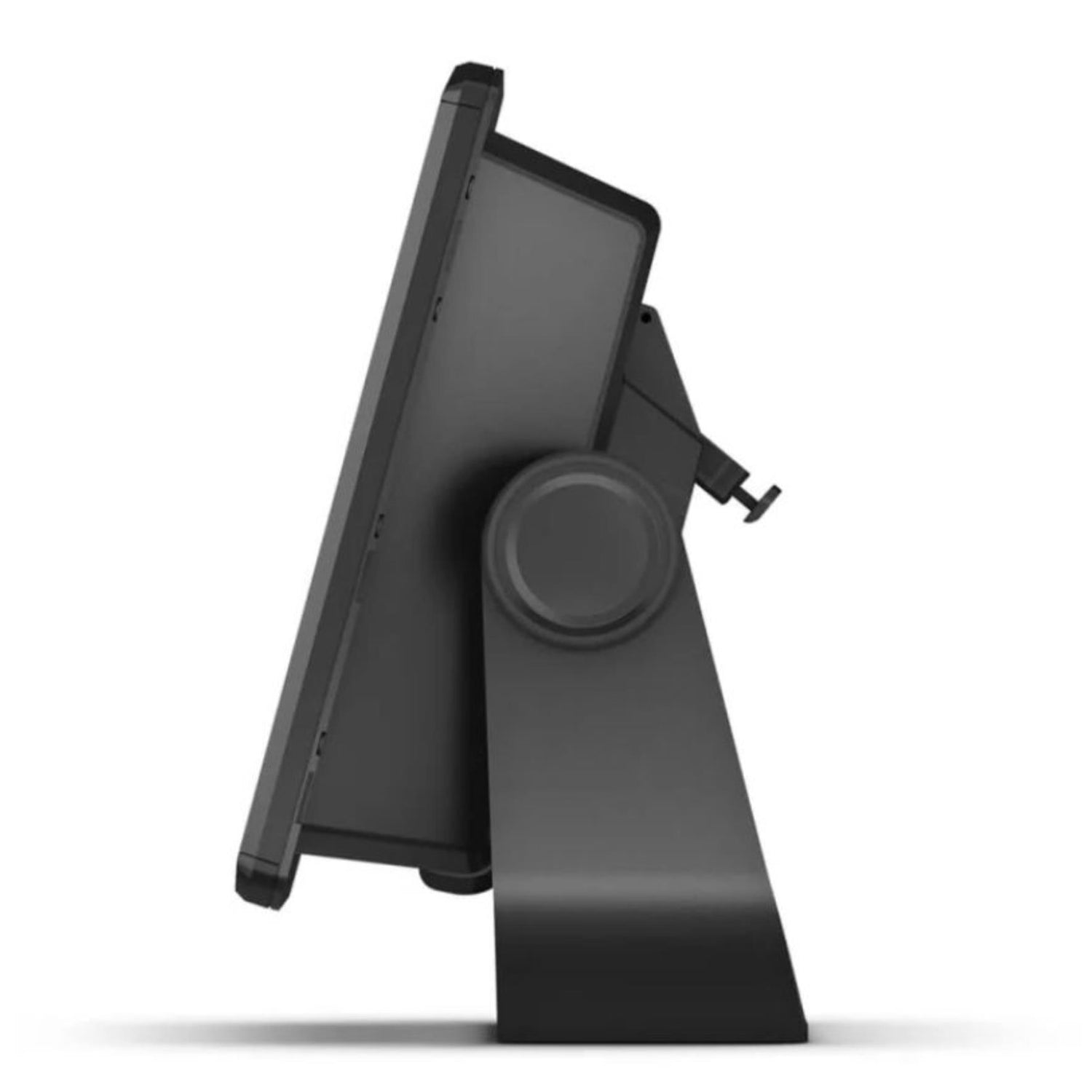

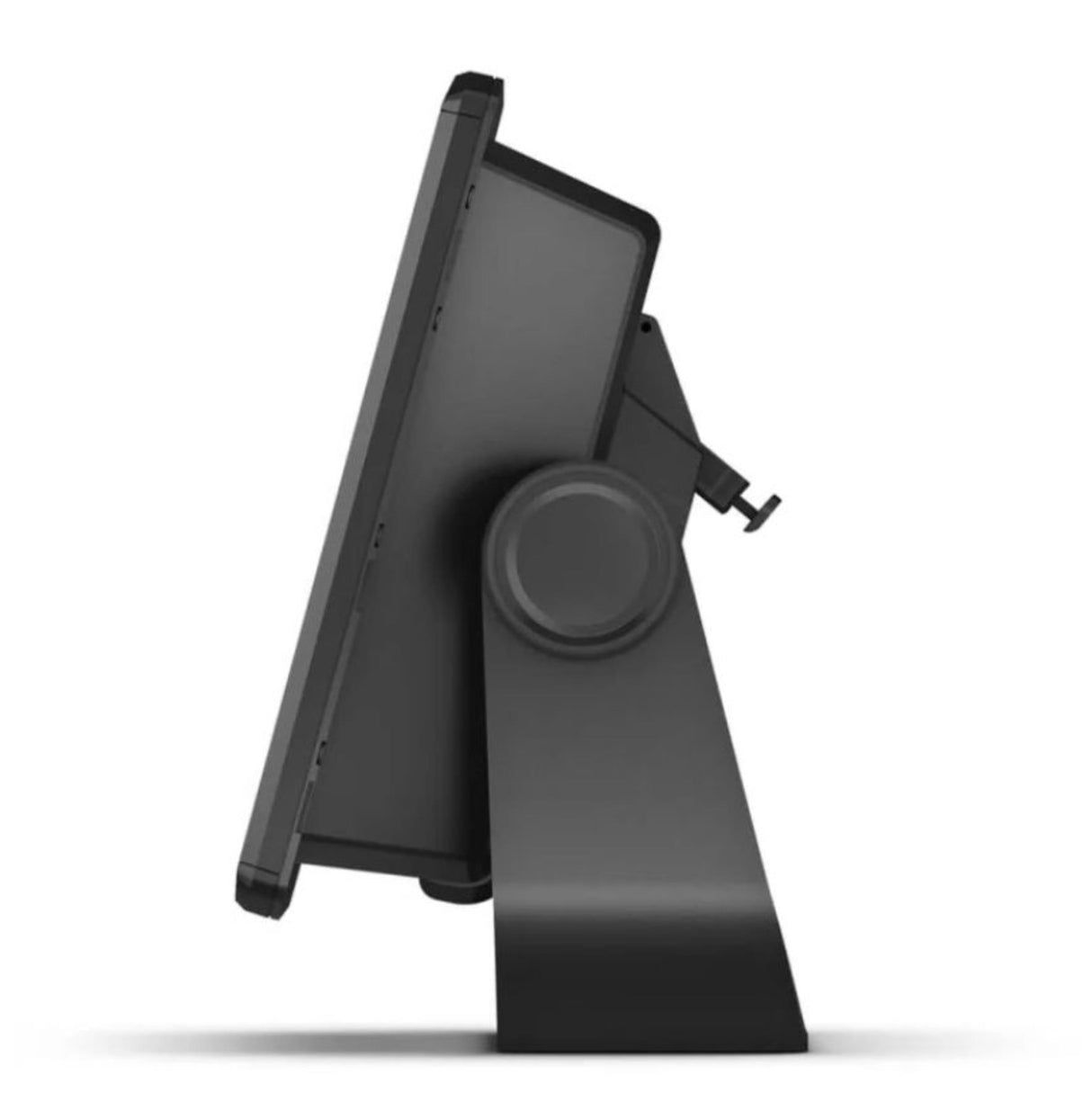

Take it away - The quick-disconnect bail mount allows quick install and removal from the boat.

In The Box

• ECHOMAP Ultra 102sv
• Charging/data cable
• Bail Mount With Quick Release Cradle
• Protective sun cover
• Hardware
• Documentation

Manual
Template

o 10″ Touchscreen
o Supports LiveScope Sonar and More
o Supports Garmin Navionics+ and Garmin Navionics Vision+ Mapping
o Wirelessly share sonar, waypoints and routes
o Capture screen recordings to share fish catches
o Multi-band GPS for improved position accuracy

General
o Dimensions: 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
o Weight: 1.8Kg (4lbs)
o Water Rating: IPX7
o Touchscreen: ✓
o Display Type: WXGA IPS
o Display Size: 21.7 x 13.6 cm, 21.7cm Diagonal (8.5″ x 5.4″; 10″ Diagonal)
o Display Resolution: 1280 x 800 pixels
o Mounting Options: Bail or Flush
o Input: Touchscreen with keyed assist

Maps & Memory
o Accepts Data Cards: 2 microSD Cards
o Waypoints: 5000
o Track Points: 50000
o tracks: 50 Saved Tracks
o Navigation Routes: 100

Sensors
o GPS: ✓
o GLONASS: ✓
o GALILEO: ✓
o BEIDOU: ✓
o Built-in Receiver: ✓
o Receiver: 10 Hz
o NMEA 2000 Compatible: ✓
o Supports WAAS: ✓
o Supports Multi-Band, Multi-Constellation GPS: ✓

Optional Map Support
o BlueChart G3: ✓
o BlueChart G3 Vision: ✓
o Garmin Navionics+: ✓
o Garmin Navionics Vision+: ✓
o TOPO 100k: ✓
o Standard Mapping: ✓
o Garmin Quickdraw Contours: ✓

Chartplotter Features
o AIS: ✓
o DSC: ✓
o Fusion-Link: ✓
o ActiveCaptain App Compatible: ✓
o Sailing Features: ✓

Electrical Features
o Power Input: 10 - 18 VDC
o Typical Current Draw at 12V: 2.3A
o Max Current at 12V: 5A
o Max Power Use at 10V: 34W

Sonar Features & Specifications
o Displays Sonar: ✓
o Power Output: 600 W

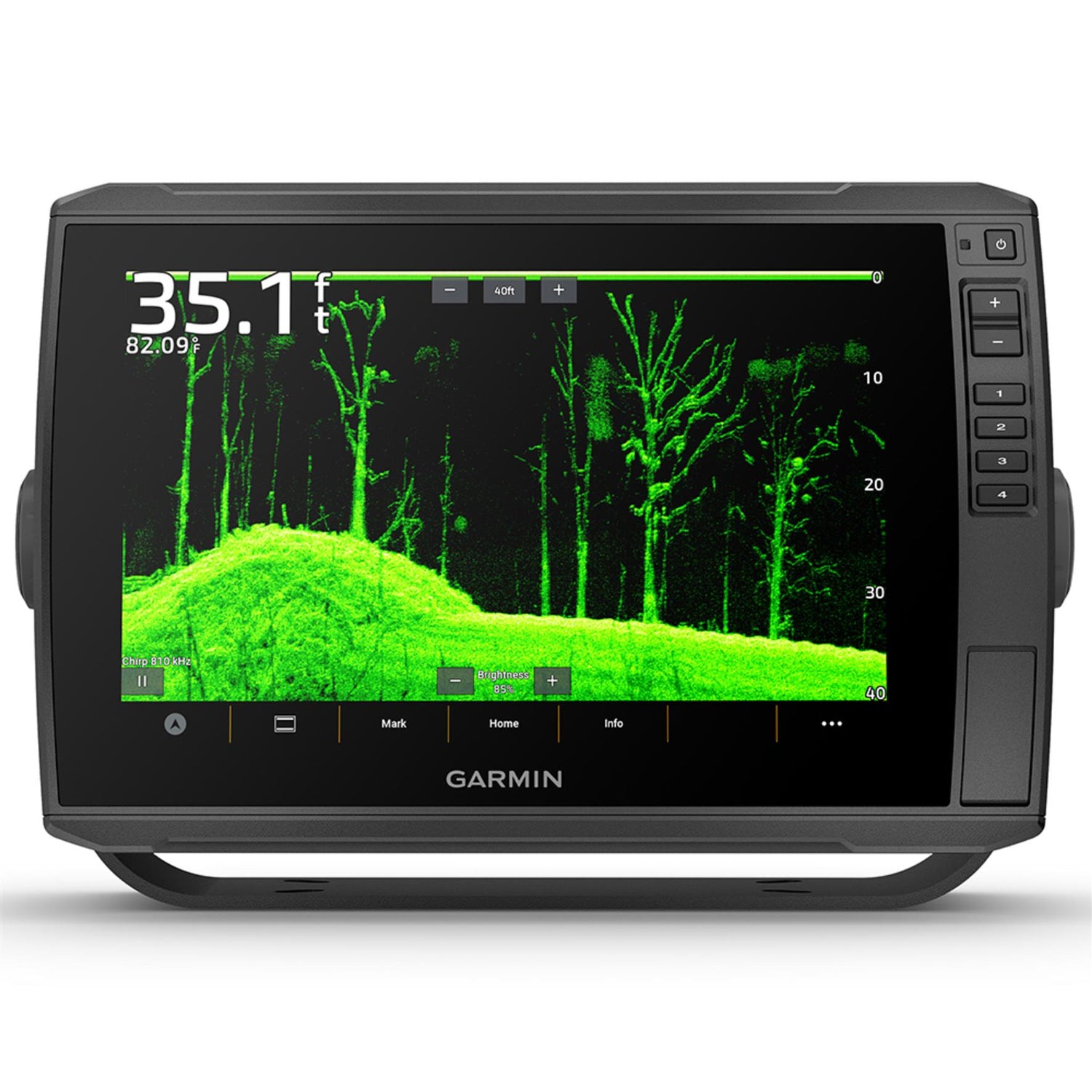

o Traditional Sonar: Built-in (Single channel CHIRP, 70/83/200 kHz, L/M/H CHIRP)
o ClearVu: Built-in 260/455/800/1000/1200 kHz
o SideVu: Built-in 260/455/800/1000/1200 kHz
o Panoptix Sonar: ✓
o Livescope: ✓

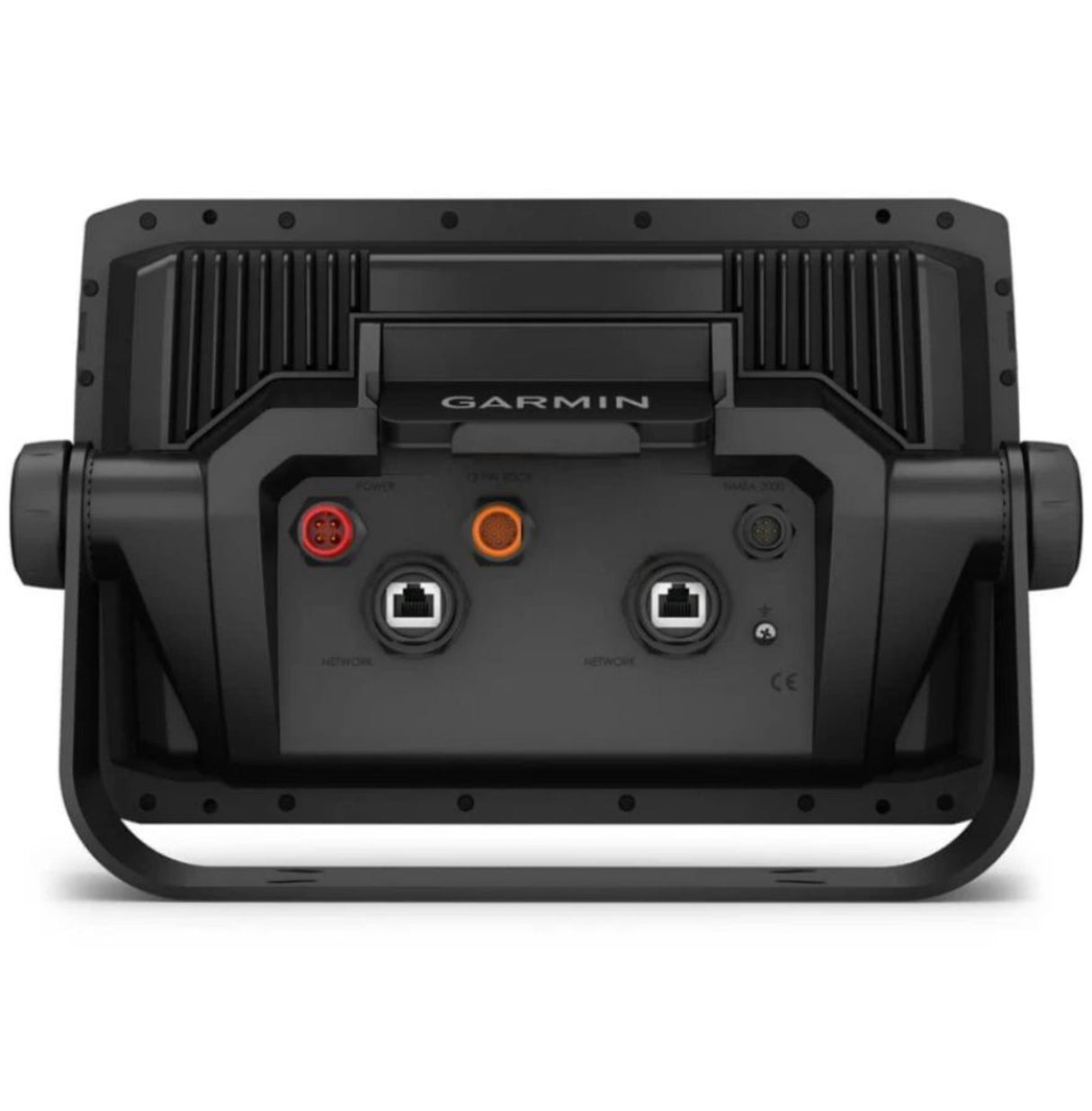

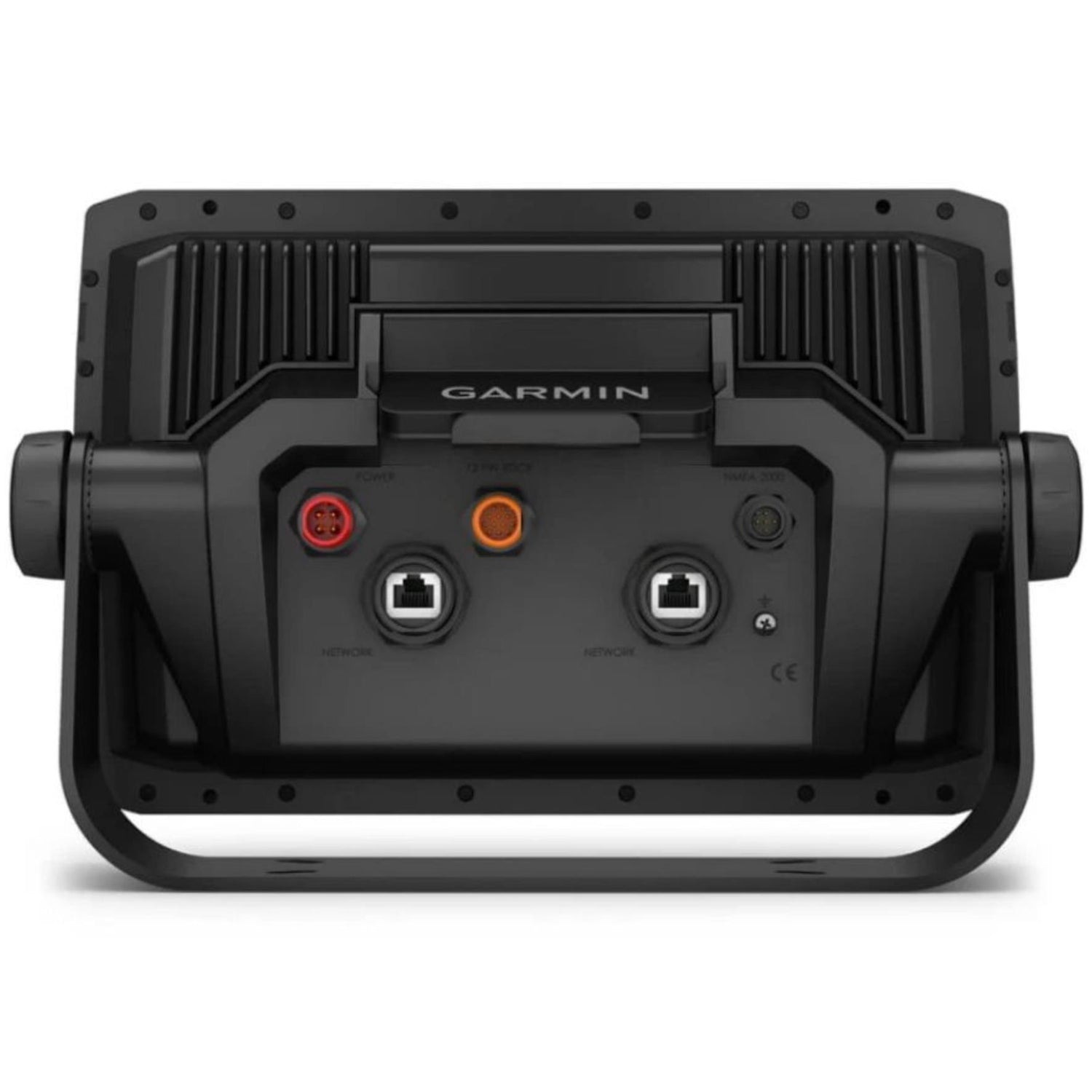

Connections
o NMEA 2000 Ports: 1
o Garmin Marine Network Ports: 2 (Large connector)
o 12 Pin Transducer Ports: 1 x 12-pin scanning sonar
o ANT+: ✓
o Garmin Wi-Fi Network: ✓
