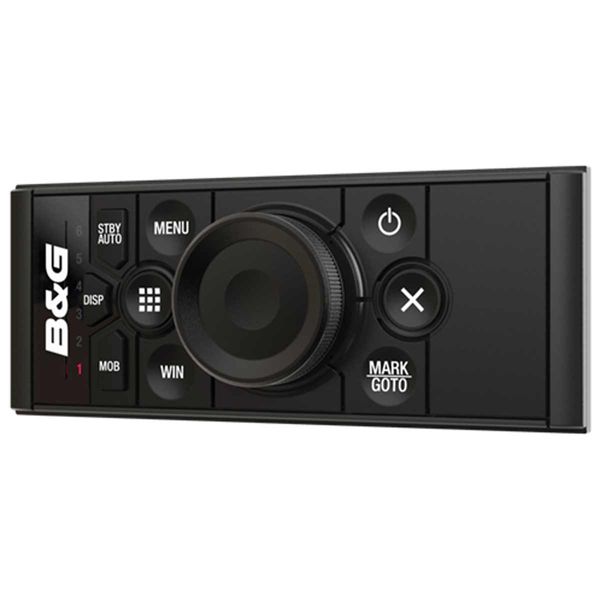

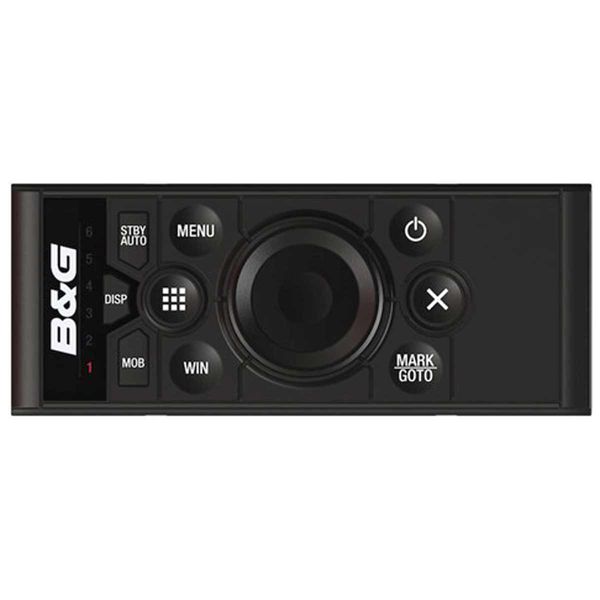

B&G ZC2 Remote Controller for Zeus2/3/S, GH and Vulcan (Landscape)

B&G ZC2 remote control 000-12513-001 is perfectly designed for mounting in a cockpit pedestal, by the chart table or in other locations suiting a ‘landscape’ orientation. The B&G ZC2 Remote Controller provides intuitive keypad and rotary-dial command of up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays; and can be used to control a B&G autopilot via any networked display.

Enjoy remote control with a ZC2 remote - Take full control of up to six displays from one ZC2 remote controller. A neat and stylish install with a knurled aluminium controller, the ZC2 minimises clutter and enables you to take full fingertip control from wherever it’s mounted.

Humidity: Up to 95% RH

Weight: 0.3 kg (0.66 Lbs)

Interface: keypad

o Control up to 6 Zeus2, Zeus3, Glass Helm or Vulcan multifunction displays
o Autopilot remote control via any networked display
o High-quality aluminium control dial with built-in cursor functions
o MOB function
o Landscape orientation
o Narrow design perfect for chart table mounting
o Dash mount with low 8mm profile
o Zero-profile flush mount with optional bracket
o Integrated high-decibel speaker for critical alarms
o Quickly switch displays with dedicated button & LED indicators
o Single NMEA 2000 connection

o Supplied With: N2K-T-RD Network T-Connector, OP50/ZC2 Keypad Sun Cover & ZC2 Dash Kit (Gasket, Bezel & Screws)
o Connections Description: NMEA2000 Micro-C port, 2 LEN
o Brand: B&G
o Voltage Description: Supply: 12V DC (10V-16V DC)
o Wattage: Typical: 0.6W, 1.0W Maximum, Minimum 0.5W
o Fuse: Recommended 5A
o Approvals: IEC/EN 60945
o Height Description: 60mm (2.4")
o Width: 150mm (5.9")
o Depth: 45mm (1.8")
o Operating Temperature: -15C to +55C (5F to 131F)
o Dimensions: Compass Safe: 200mm (0.9 ft)
o Warranty: 2 Years
o Mounting Description: Flush
