Victron

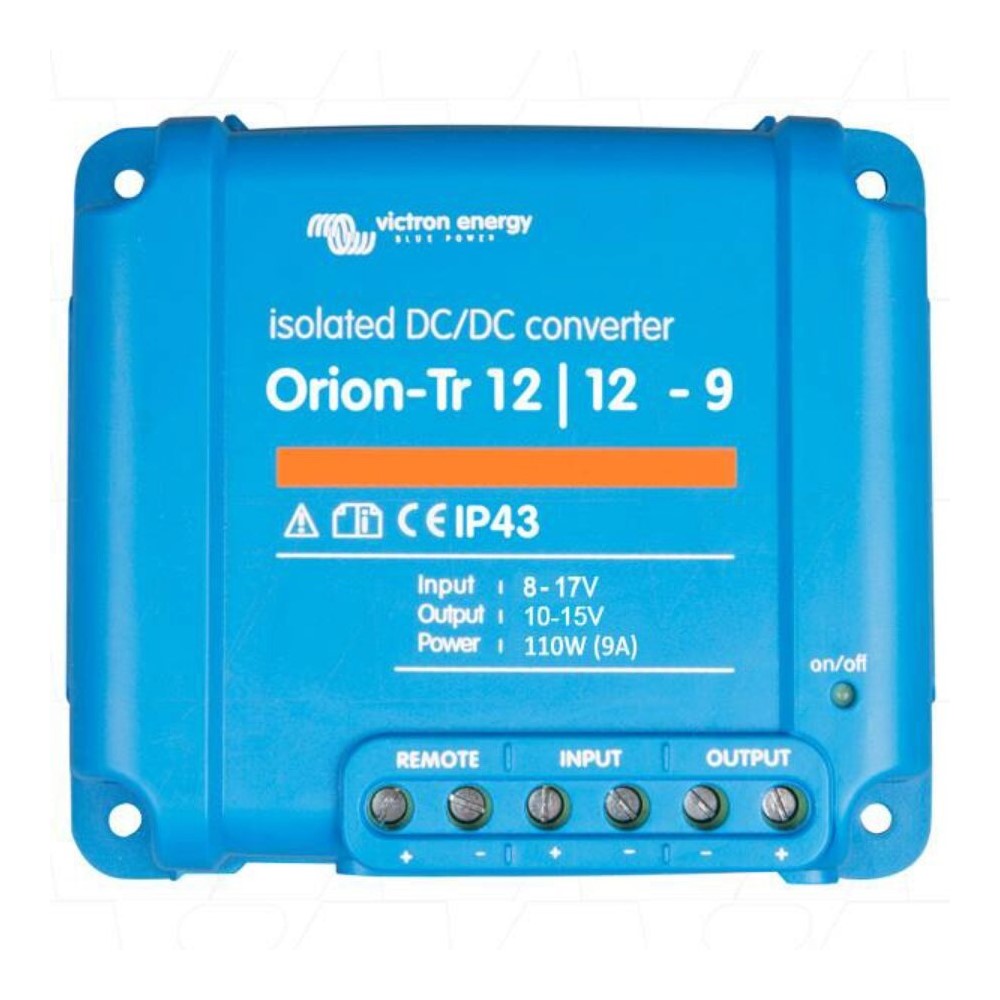

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)

Write a review
| Ask a question

ORI121210110R 5 Year Warranty

£60.71 £75.60

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description
12V-12V converter ensures a stable 12V output with constant voltage no matter if the battery is charged or discharged.

Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.

IP43 protection: When installed with the screw terminals oriented downwards.

Screw terminals: No special tools needed for installation.

Features

o Input Voltage Range: 8-17V
o Under Voltage Shutdown: 7V
o Under Voltage Restart: 7.5V
o Nominal Output Voltage: 12.2V
o Output Voltage Adjust Range: 10-15V
o Short Circuit Output Current: 32A
o Cont. Output Power at 25°C: 110W
o DC Connection: Screw Terminals
o Protection Category: IP43
o Dimensions: 100 x 113 x 47mm
o Weight: 0.42Kg
o Warranty: 5 Years
