Blue Sea Systems

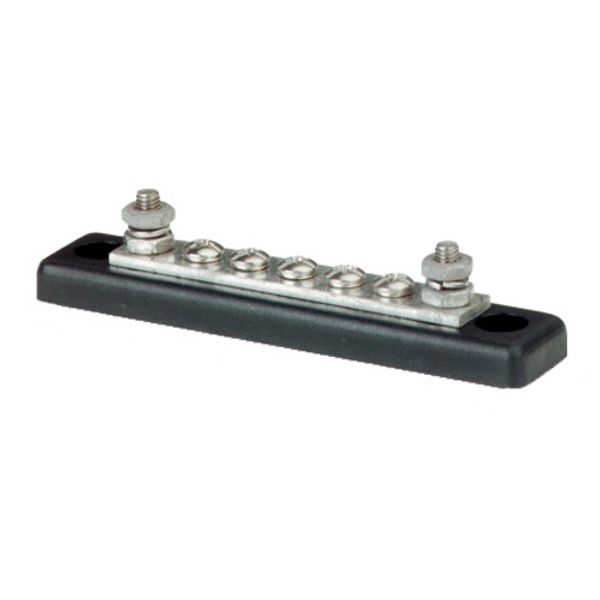

Blue Sea Minibus 5x 8-32 Common Bus (100A)

Write a review
| Ask a question

2304-BSS 3 Year Warranty

£16.58

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description
MINIBUS 100 AMP COMMON BUSBARS Provides convenient busing for limited space applications. Screw Terminal Torque: 15 in-lb (1.69 Nm) Stud Torque: 18 in-lb (2.03 Nm) 8-22306 Grounding Busbar 8-22713 Spare Cover

Features

N/A (Not Applicable)

Specifications

o Material: Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated)
o Connections Description: Terminals: #10-32 Stud, #8-32 Screw
o Brand: Blue Sea Systems
o Colour: Black
o Voltage Description: 300V AC / 48V DC maximum
o Amps Description: Continuous: 100A
o Approvals: CE
o Width: 22.86mm (0.9")
o Length: 106.68mm (4.2")

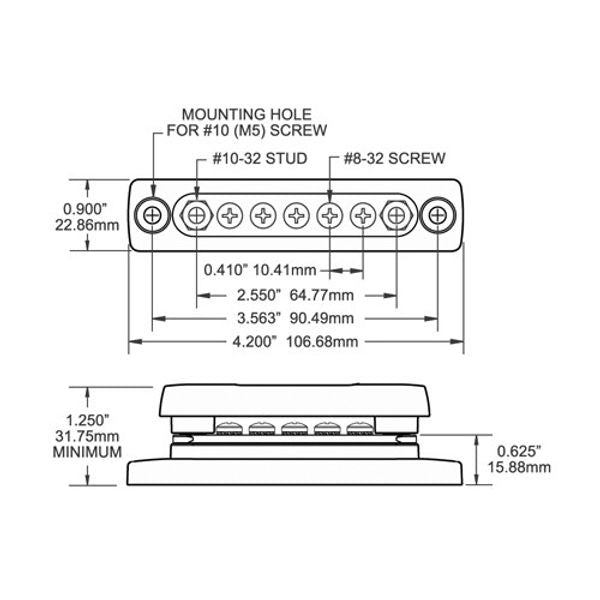

o Dimensions: Distance Between Mounting Hole Centres: 90.49mm (3.6"), Mounting Hole: #10 (M5)
