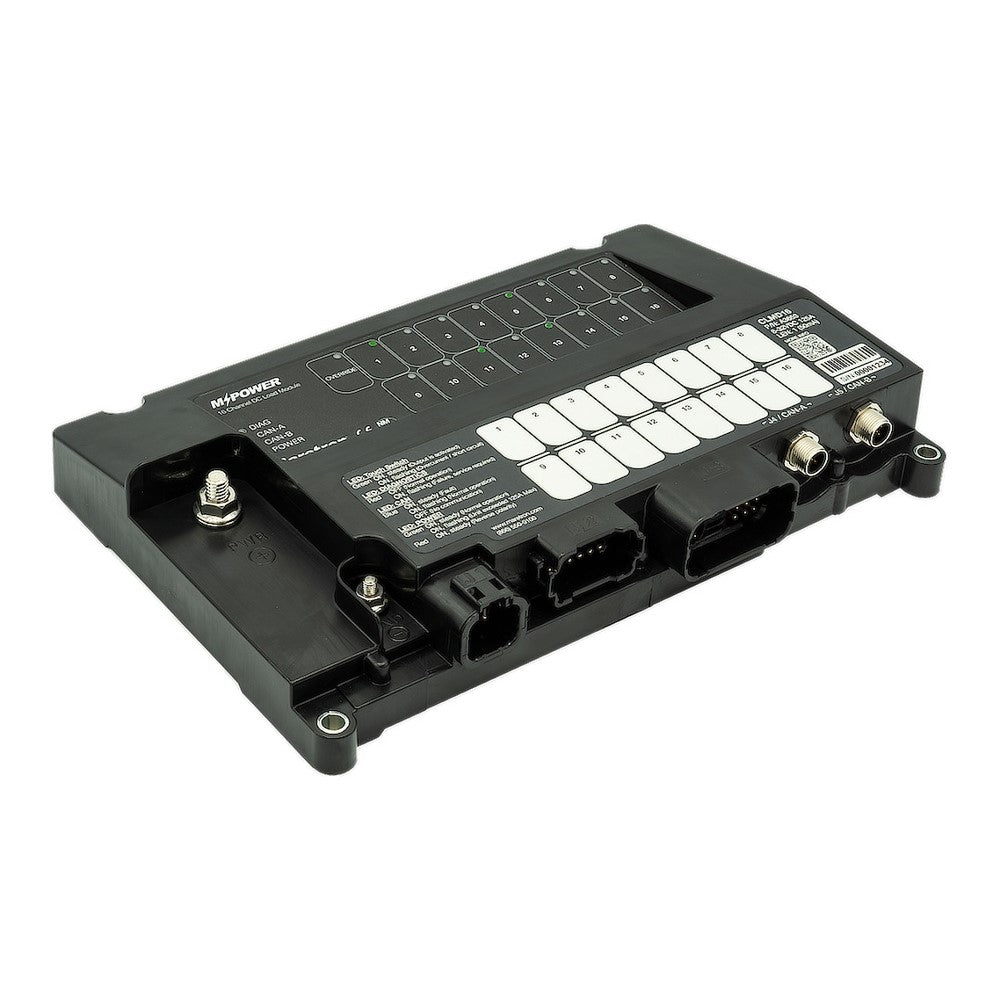

Maretron MPower CLMD16 Power Module with A3708, A3709 & A3710

Write a review
| Ask a question

CLMD16-R 2 Year Warranty

£1,618.41

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

 Datasheet  Manual

For larger breakers and more circuits, the MPower CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches passerelles trim tabs etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states or as inputs for other data such as bilge alarms or hatch positions etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights pumps motors and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.

Monitor and control onboard electrical and electronic systems and reset circuits onboard and remotely with the following devices:

  • Any 3rd party MFD that supports standard digital switching PGNs
  • Maretron MBB300C Black Box - Garmin OneHelmTM - Raymarine LightHouse 3
  • Maretron TSM Series Dedicated Touchscreen
  • MPower VMM6 Digital Switch Module
  • MPower CKM12 Keypad
  • Any device running Maretron’s award-winning N2KView V3 Software

In The Box

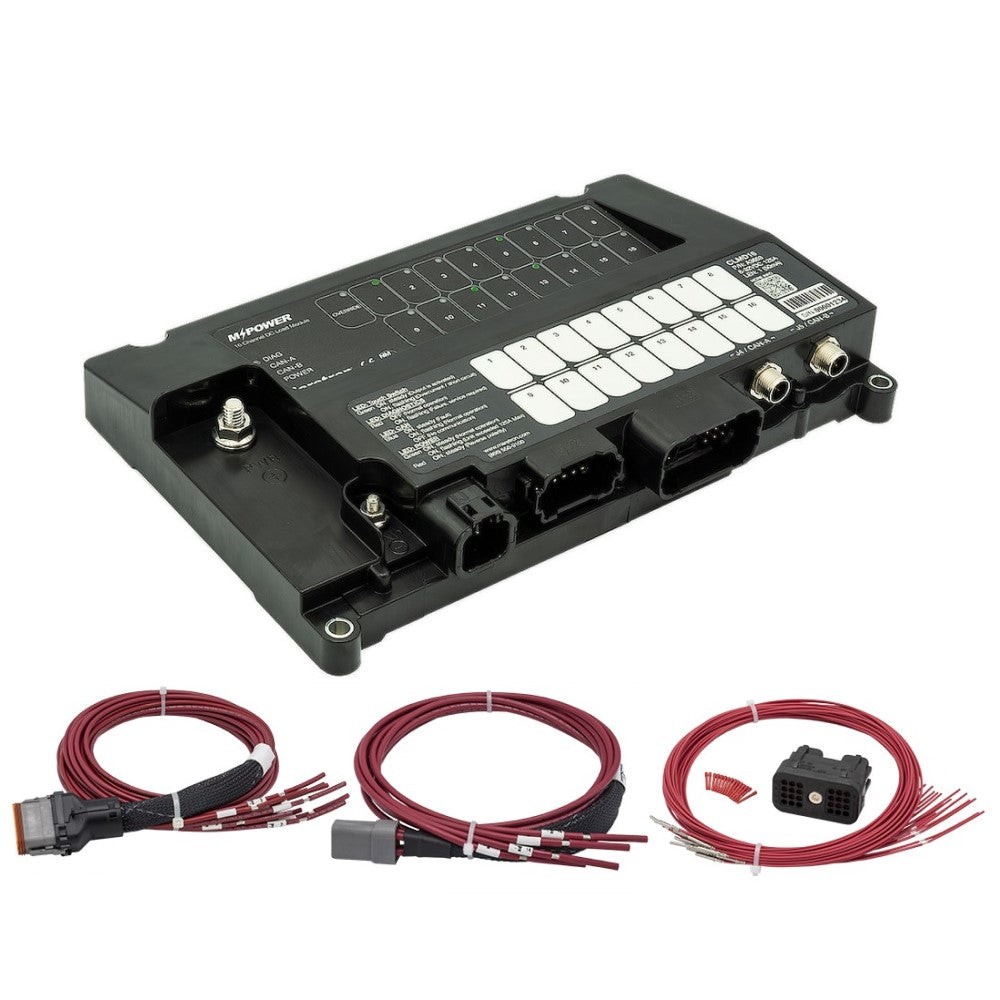

  • CLMD16 - 16 Channel Load Controller Module
  • A3708 - Output (J2) Mating Connector with 1m Flying Leads
  • A3709 - Output (J1) Mating Connector with 1m Flying Leads
  • A3710 - J3 (I/O Gen Purpose) Harness Kit with 1m Flying Leads

Features

o NMEA 2000 Interface
o IP67 Rated
o Ignition Protected
o Opto-isolated from NMEA 2000, eliminating potential ground loops
o 16 dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000 network (4 x 25A, 12 x 12A)
o Individual breaker electrical current monitoring
o Breakers can have Power-Up states defined (ON, OFF or previous states)
o Breakers can be Locked against inadvertent actuation.
o Capacitive touch switches for local control of all loads
o All inputs and outputs protected against short to Power and short to Ground
o Automatic ECB overcurrent shutdown
o Automatic ECB thermal shutdown (Overtemperature Protection)
o 8 discrete digital input channels capable of sensing +ve or ground signals
o 2 resistive analog input channels
o 1 x 4-20mA current loop input channel

Specifications

N/A (Not Applicable)
