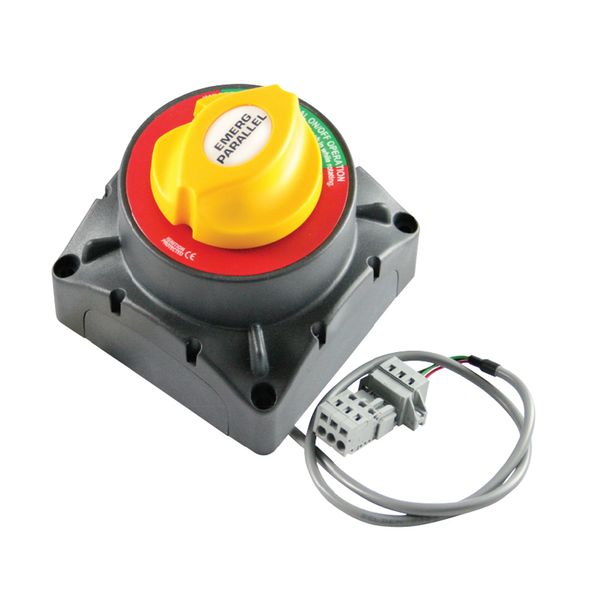

BEP 720-MDO-EP Emergency Parallel Switch (32V / 500A)

The BEP 720-MDO motorised switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds). The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes. Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on. The BEP 720-MDO id designed and constructed for the harsh marine environment, utilising tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics to ensure longevity. The unit is ignition protected, provides On/Off switching operation, and can be recessed or surface mounted. Manual override option - 10 minute remotely activated emergency parallel function (no voltage sensitive function) - 12/24 volt operation (both battery banks must be same voltage) - Continuous rating: 500 Amps DC - Intermittent rating: 700 Amps DC - Cranking rating: 2500 Amps DC - Maximum voltage: 32 Volts DC - Operation: Manual On/Off / Motorized On/Off - Mounting: Recessed or surface - Auto operating range 8 to 30 Volts DC - Stud size: 2 x 12mm(1/2") -Tin plated copper studs and nuts - Power draw: Switch in off position: 7mA

N/A (Not Applicable)

o Material: Tinned copper conductors/studs, stainless steel nuts, high temperature fibre reinforced plastics
o Continuously Rated: 500 Amps DC
o Ignition Protected: Yes - Meets UL 1107 standards
o Brand: BEP
o Model: 720-MDO-EP (Version 8)
o Voltage Description: Auto: 8 - 30V DC / Maximum: 32V DC (12V or 24V systems)
o Amps Description: 500A
o Height Description: 110mm (4.3")
o Width: 102mm (4")
o Length: 102mm (4")
o Rating: Intermittent: 700 Amps DC / Cranking: 2500 Amps DC
o Size: Cable to meet rating: 2 x 3/0AWG (95mm2)
o Mounting Description: Recessed or surface
